KM73GR Offset Printing Plates A3 Water Base A2 Flexo Photopolymer
  • KM73GR Offset Printing Plates A3 Water Base A2 Flexo Photopolymer
  • KM73GR Offset Printing Plates A3 Water Base A2 Flexo Photopolymer
  • KM73GR Offset Printing Plates A3 Water Base A2 Flexo Photopolymer
  • KM73GR Offset Printing Plates A3 Water Base A2 Flexo Photopolymer

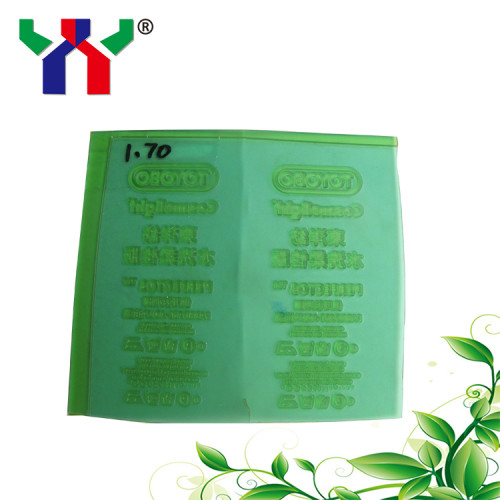

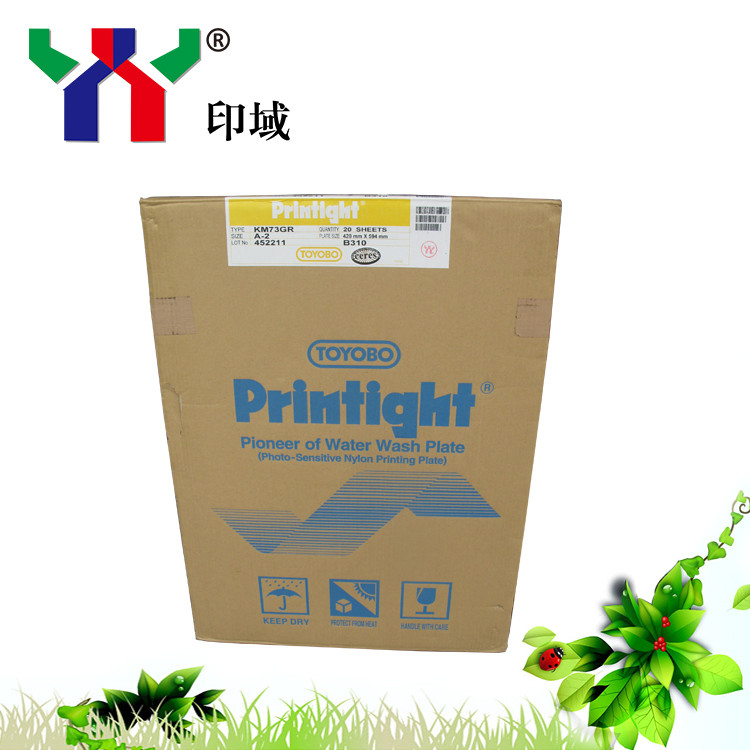

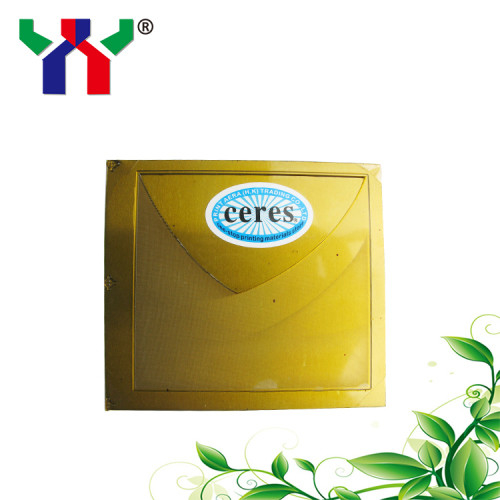

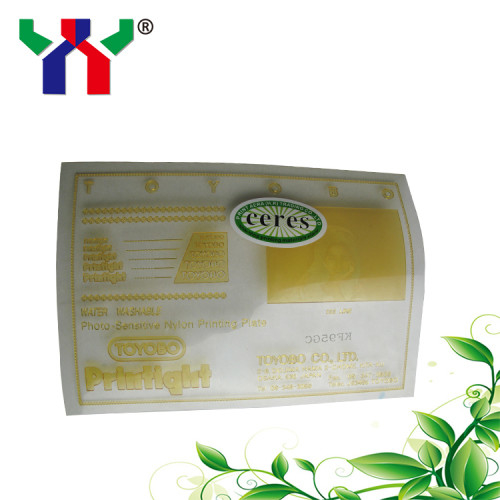

KM73GR Offset Printing Plates A3 Water Base A2 Flexo Photopolymer

Place of Origin Guangdong, China (Mainland)
Brand Name CERES
Model Number Printight Km73gr
Product Details
Use:
Offset Printing
Style:
Positive
Type:
PS Plate, Resin Plate
Used For:
Letterpress Printing,Flexo Printing
Color:
Transparent
Model:
Km73gr
High Light:

KM73GR Offset Printing Plates

,

A3 Water Base Offset Printing Plates

,

A2 Flexo photopolymer printing plates

Product Description

KM73GR Water Base Flexo Photopolymer Printight Plate A2&A3 Size



Feature


1. Washout with water
 TOYOBO Pintight printing plate makes customers of this system possible to use ordinary water for washout.

2. Transparent and flexible printing plate
Transparent polyester film as a support material gives excellent dimensional stability and easy process ability to printing machines. Steel base plates are also available.

3. Slip coat
  Has slip coat to get good contact between the plate and the negative film. You can use plain negative film.





Spectral Sensitivity 300 ~ 400nm
Thickness Tolerance

±10μm (Film base)

±15μm (Metal base)

Resolving Capability 150 ~ 200 lines/inch
Minimum Dot Image 0.10mm in diameter (0.004")
Minimum Line Image 0.03mm in width (0.0011")







Type Hardness Shore D Base Total Plate Thickness Relief Depth Advantage
KF 73GR 67 Film 0.95mm 0.68mm

Sharp and fine line

(Flatbed printing)













KM73GR Offset Printing Plates A3 Water Base A2 Flexo Photopolymer 0



KM73GR Offset Printing Plates A3 Water Base A2 Flexo Photopolymer 1



KM73GR Offset Printing Plates A3 Water Base A2 Flexo Photopolymer 2




















KM73GR Offset Printing Plates A3 Water Base A2 Flexo Photopolymer 3
