Product:CERES YY‑316Y‑UV Solvent‑based UV offset light‑fast CMYK ink, light‑fast grade 6‑8, for tobacco‑alcohol, daily‑chemical, electronics & food packaging; complies with RoHS, EN71‑3, MSDS certification
1. Viscosity / Fluidity / Curing‑Drying Speed Specification Table
表格
| Item |
Specification |
Remarks |
| Viscosity (25 ℃, Brookfield viscometer) |
150 000‑200 000 cps |
Solvent‑based thick paste offset ink; shear‑thinning under printing pressure |
| Ink Tack (32 ℃,400 rpm) |
11‑15 |
Balanced ink transfer, low misting; fit high‑speed sheet‑fed offset up to 11 000 impressions/hour |
| Flow value |
25‑31 mm |
Good leveling, no pin‑holes on printed film |
| Particle Fineness |
≤5 μm |
Fine pigment dispersion, sharp dot reproduction |
| UV curing lamp requirement |
120 W/cm, 1‑5 units mercury lamp, 365 nm main wavelength |
Mercury UV lamp preferred; partial LED‑UV available with parameter adjustment |
| Curing energy |
130‑180 mJ/cm² |
Energy varies with substrate & ink film thickness |
| Light‑fastness Grade |
6‑8 (Blue Wool Scale) |
High anti‑fading performance for outdoor & long‑display packaging |
| Feature |
Solvent‑based, high adhesion & flexibility, high peel strength |
For non‑absorbent plastic film & metalized substrates |
Note: Real performance depends on lamp aging, printing speed, ink film thickness, substrate surface tension & workshop temperature‑humidity.
2. Fluorescent Effect Comparison & Drying‑Time Test Data by Substrate
Image placeholder notes
-
-
Drying / Curing Time Comparison on Different Substrates (standard condition: 25℃, 55‑60%RH, 140 mJ/cm² UV energy)
表格
| Substrate Type |
UV full curing time |
Post‑curing thorough dry (standing) |
Remarks |
| Coated art paper / gold‑silver card |
0.4‑1.2 s |
15‑30 min |
Porous‑absorbing substrate, fastest drying |
| Aluminized paper / metallic card |
0.8‑1.8 s |
30‑45 min |
Non‑absorbent metallic surface |
| Treated‑PET film |
1.0‑2.0 s |
45‑60 min |
Surface tension ≥38 dyne/cm required |
| PVC / PS sheet |
1.2‑2.2 s |
50‑70 min |
Good flexibility after curing |
| Corona‑treated PE / PP |
1.5‑2.5 s |
60‑90 min |
Must complete corona pretreatment |
Important: Even after instant UV surface curing, physical hardness & full solvent resistance will improve within post‑curing standing period.
3. Compatible Printing Method Quick‑lookup & Substrate Compatibility
Printing Process Compatibility
表格
| Printing Method |
Compatibility |
Remarks |
| Sheet‑fed Offset Printing |
✅ Highly Recommended |
Main application, support 11 000 imp/h high‑speed press |
| Web Offset Printing |
✅ Conditional |
Tack & ink feeding parameter fine‑tuning required |
| Flexographic Printing |
❌ Not suitable |
Viscosity system designed for offset, not for anilox roller |
| Gravure Printing |
❌ Not suitable |
Paste viscosity mismatch gravure requirement |
Substrate Compatibility List
表格
| Substrate |
Compatibility |
Application Notes |
| Coated paper, cardboard, gold‑silver card |
✅ Excellent |
Tobacco‑alcohol, gift‑box packaging |
| Aluminized paper / metal‑coated sheet |
✅ Excellent |
Metallic packaging, label printing |
| Treated‑PET, PVC, PS film |
✅ Good |
Electronic product packaging, plastic labels |
| Corona‑treated PE / PP |
⚠️ Conditional |
Must do corona surface pretreatment |
| Untreated PE / PP |
❌ Poor adhesion |
Not recommended without primer coating |
4. Packaging Selection Guide (1 kg /18 kg options), Storage & Shelf‑life
Packaging Specification Guide
表格
| Packaging Spec |
Description |
Best Application Scenario |
| 1 kg sealed iron can (standard) |
Default CERES branded tin can; 12 cans per export carton |
Sample, small‑batch production, frequent formula change; MOQ 1 kg for testing |
| 1 kg can with OEM private label |
Custom sticker on original 1 kg metal can |
Reseller / brand customer; OEM MOQ: 60 kg |
| 18 kg sealed metal pail |
Large‑capacity bulk industrial packing |
Mass continuous printing factory consumption |
| Custom outer carton |
Custom‑printed carton with customer logo, inner 1 kg /18 kg package |
Full‑custom export project |
Storage Condition & Shelf‑life
表格
| Item |
Specification |
| Storage Temperature |
15‑25 ℃; strictly avoid >30 ℃ high‑temperature warehouse; keep away from UV‑light, direct sunlight & heat source |
| Relative Humidity |
40‑65 % RH; warehouse keep dry & ventilated, far from open fire & oxidizing agent |
| Light‑proof & Sealing |
Keep cans tightly sealed. Prevent solvent volatilization. Seal lid tightly immediately after opening each use. |
| Shelf‑life |
12 months under unopened original‑package standard storage condition |
| Opened‑container usage suggestion |
Fully consume within 3‑4 months after opening; sediment or thickening may occur over long‑time exposure to air. |
Warning: If ink shows obvious thickening, gelling, stratified sediment before expiry date, it indicates improper storage; discontinue usage.
5. Solvent‑based Ink Safe Operation Guidelines & VOC Data
VOC Parameter
- VOC content: 7.2‑9.5 % (tested according to GB 38507‑2020)
- Certification: RoHS, EN71‑3, total lead test, MSDS available for download
Safe Operation Guidance
- Ventilation: Keep strong local exhaust ventilation inside printing workshop; avoid long‑term inhalation of solvent vapor.
- Personal Protection: Wear nitrile chemical‑resistant gloves; chemical safety goggles recommended for operation; wear impermeable work clothes.
- Skin & Eye Contact: If contact with skin, wash thoroughly with soap & clean water; if splashed into eyes, flush large amount of clean water and seek medical help.
- Fire‑safety: Keep away from flame, spark and high‑heat sources. No smoking in operation zone.
- Waste disposal: Waste ink & contaminated rags shall be treated as hazardous chemical waste, follow local environmental regulation.
- Mixing warning: Do not arbitrarily mix with other brand ink or unknown solvent, may trigger gelling & performance failure.
Full safety data please refer to MSDS document.

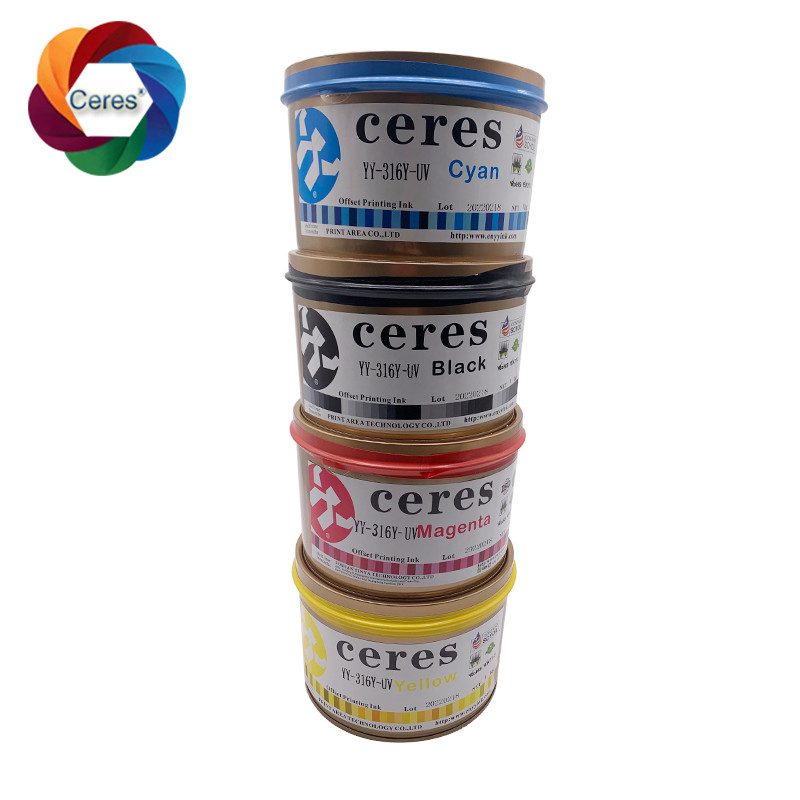

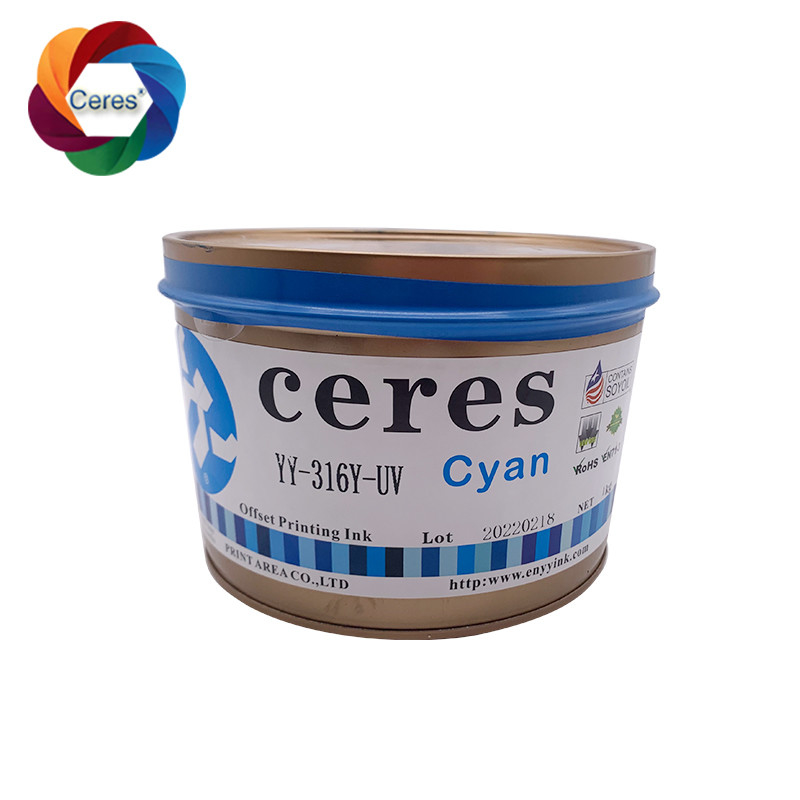

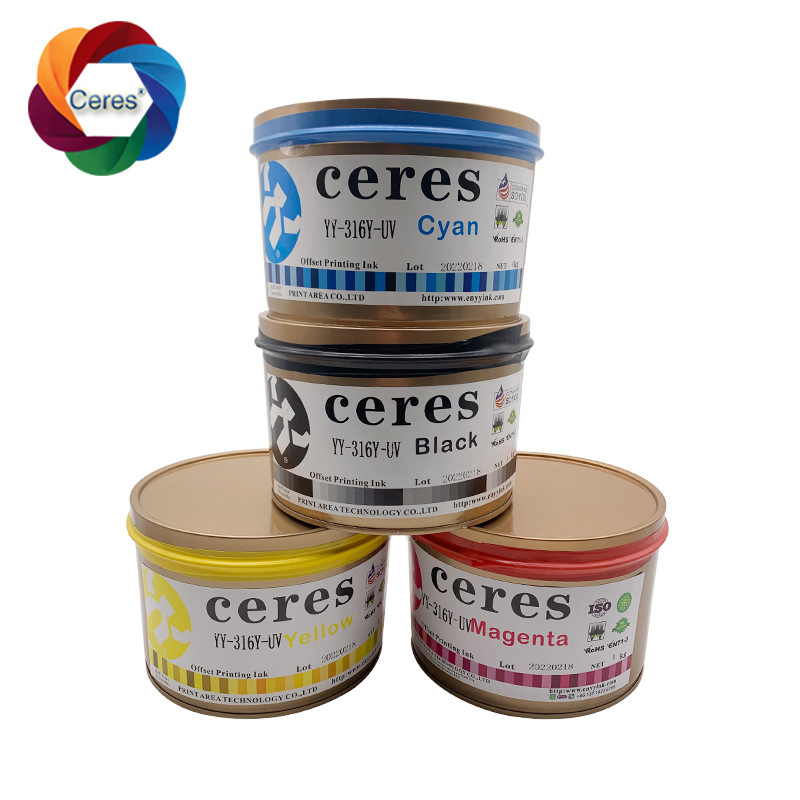

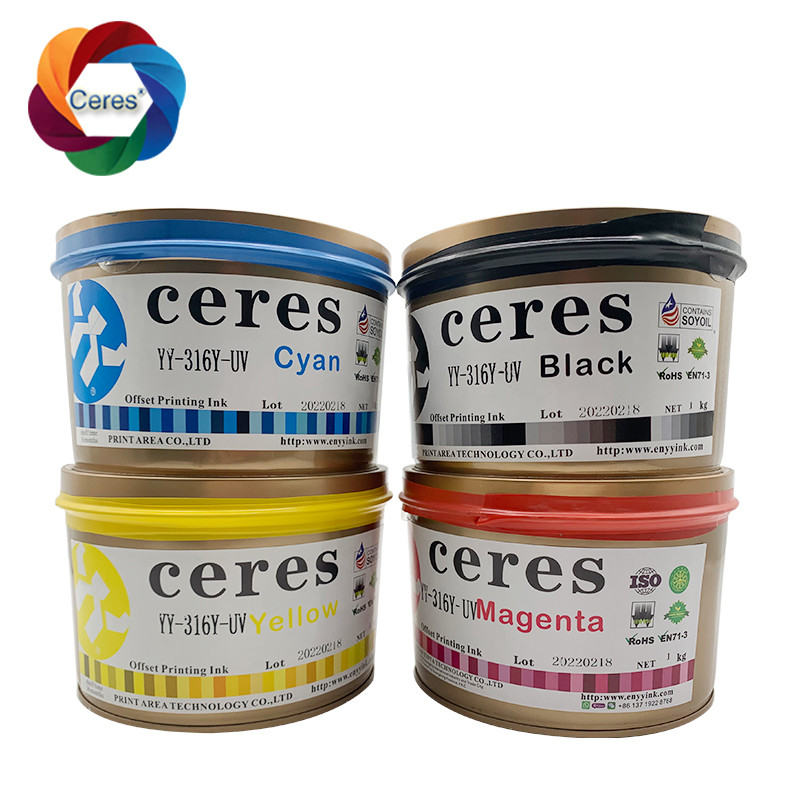

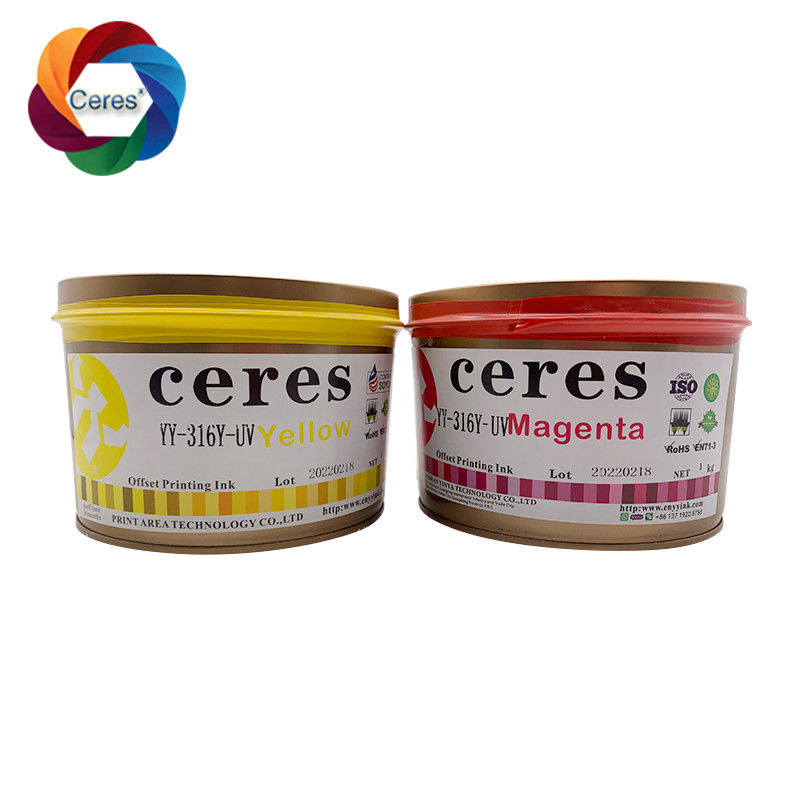

6. Product Real‑shot & Package Picture Notes (≥5 images)
7. FAQ Frequently Asked Questions
Q1: What is MOQ? A: Minimum order quantity is 1 kg for test sample. Bulk production order starting from 25 kg. Small test sample is available for press trial.
Q2: What is delivery lead‑time? A: Stock items: ship within 3 working days after payment confirmed. Custom color / OEM private‑label goods: 14‑18 working days.
Q3: What customization service do you provide? A: Custom fluorescent strength adjustment, special light‑fastness grade tuning, OEM private label sticker & custom carton packing; special color matching for packaging projects is acceptable.
Q4: Logistics & shipping for solvent‑based ink? A: Ink belongs to chemical liquid goods. International courier options: FedEx, TNT, DHL, UPS, EMS. Large‑volume bulk order can choose sea freight or air freight. Payment terms: T/T, Western Union, Paypal.
Q5: After UV curing, printed film still feels sticky? A: Check points: UV lamp aging, printing speed too fast, insufficient curing energy, excessive ink film thickness. Increase UV lamp power or reduce printing speed. Allow sufficient post‑curing standing time.
Q6: Poor adhesion on plastic film? A: Confirm substrate surface tension ≥38 dyne/cm. PE / PP film must receive corona pretreatment. Apply matching primer if adhesion still fails.
Q7: Can I mix this solvent‑based UV ink with common water‑based or oil‑based offset ink? A: Not recommended. Different resin systems may cause gelling, precipitation, unstable curing and color deviation. Run small lab test if mixing is unavoidable.
8. Competitor Comparison Table
表格
| Comparison Item |
CERES YY‑316Y‑UV Solvent‑based UV Light‑fast CMYK Ink |
Ordinary domestic solvent‑based UV offset CMYK ink |
Import premium solvent‑based UV offset ink |
| Light‑fastness grade |
6‑8 grade (Blue Wool scale) |
3‑5 grade |
7‑8 grade |
| Viscosity & tack |
150 000‑200 000 cps, tack 11‑15; stable for high‑speed offset up to 11 000 imp/h |
Viscosity drift easily; heavy misting risk under high‑speed press |
Stable viscosity‑tack, wide process latitude |
| Pigment fineness |
≤5 μm, sharp dot reproduction |
6‑10 μm, fine dot loss risk |
≤5 μm excellent dot performance |
| Substrate adhesion |
Excellent on metalized paper, PET, corona‑treated PE/PP |
Weak adhesion on non‑absorbent plastic film |
Outstanding adhesion on multi‑plastics & metal substrates |
| VOC content |
7.2‑9.5 %, comply with GB38507‑2020 |
10‑14 % high VOC |
6‑8 % low‑VOC premium formula |
| Certification |
RoHS, EN71‑3, total lead test, MSDS |
Partial certification missing |
Full complete certification system |
| Price level |
Mid‑range cost‑effective |
Low‑cost entry level |
High premium price |
| Core advantages |
High light‑fastness 6‑8 grade, good adhesion on plastic & metal substrates, fit tobacco‑alcohol / electronic / food export packaging; competitive price |
Low procurement cost, poor light‑fastness & plastic adhesion |
Top‑tier performance, expensive procurement cost |
Core selling point: High light‑fastness grade 6‑8, strong adhesion on various non‑absorbent substrates, stable for high‑speed offset packaging printing; meets international certification requirements for export‑oriented printing factories.
9. Customer Cases & Testimonials
- South‑East‑Asia tobacco‑alcohol packaging printer Used for gold‑silver card gift‑box printing. 6‑8 grade light‑fastness avoids color fading for long‑term shelf display; stable performance under high‑speed sheet‑fed offset press. Replace imported ink to cut comprehensive cost.
- Middle‑East daily‑chemical packaging manufacturer Printing on treated‑PET cosmetic packaging box. Good flexibility & peel strength after UV curing; qualified for scratch‑resistance test during transportation.
- South‑American electronic‑product label printing shop Suitable for multi‑variety small‑batch label jobs, good compatibility for metalized paper & PVC sheet; meets local RoHS & EN71‑3 import requirements.
Customer real‑feedback quote: “The YY‑316Y‑UV solvent‑based UV CMYK ink brings us satisfying light‑fastness for packaging. Adhesion on PET and metalized paper is reliable, high‑speed press runs stable. It is a good cost‑saving alternative to imported ink.”
Basic Original‑page Product Information
‑ Place of Origin: China ‑ Brand Name: CERES / YY ‑ Model: UV Offset Printing Lightfast Ink YY‑316Y‑UV ‑ Certifications: EN71‑3, RoHS, Total Lead test, MSDS ‑ Color: CMYK ‑ MOQ: 1 kg ‑ Package: 1 kg/can, 12 cans/carton ‑ Supply Ability: 40 tons per month ‑ Payment Terms: T/T, Western Union, Paypal ‑ Shipping: DHL, UPS, TNT, FEDEX, EMS
