High Sensitivity 0.15mm-0.30mm CTPPlate For Offset Printing

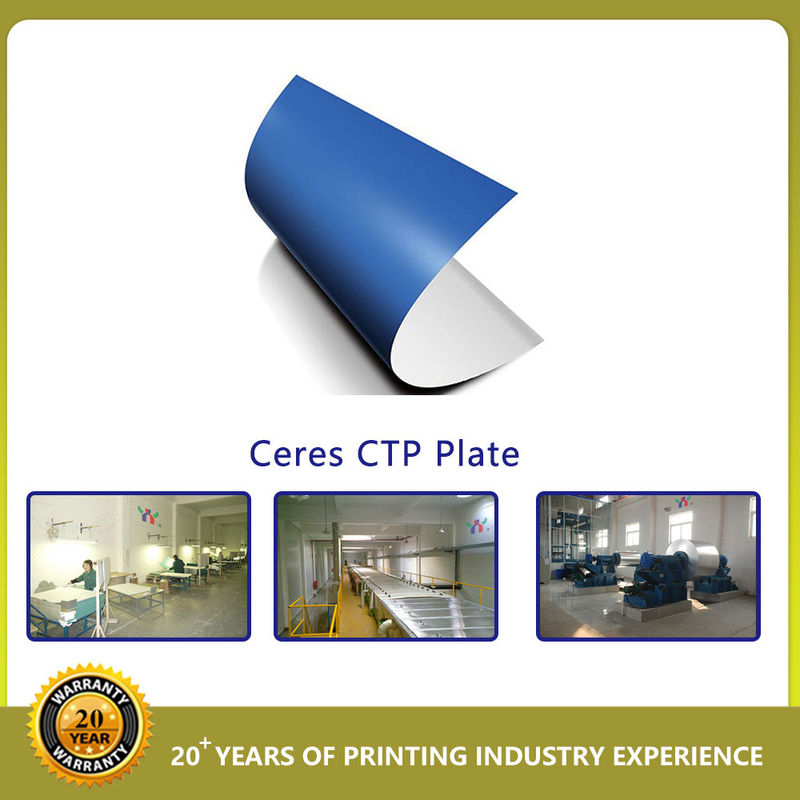

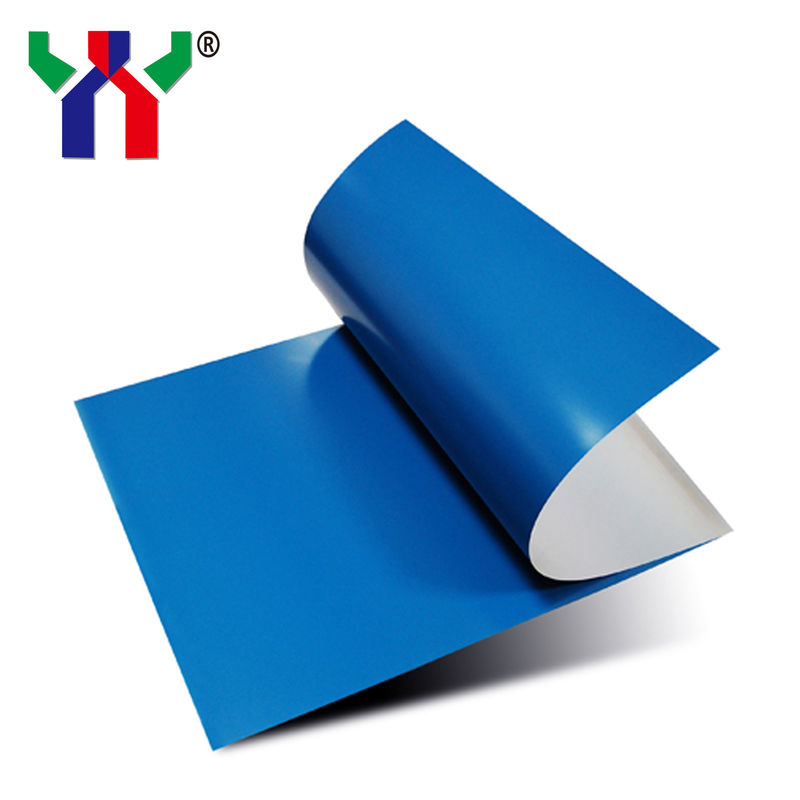

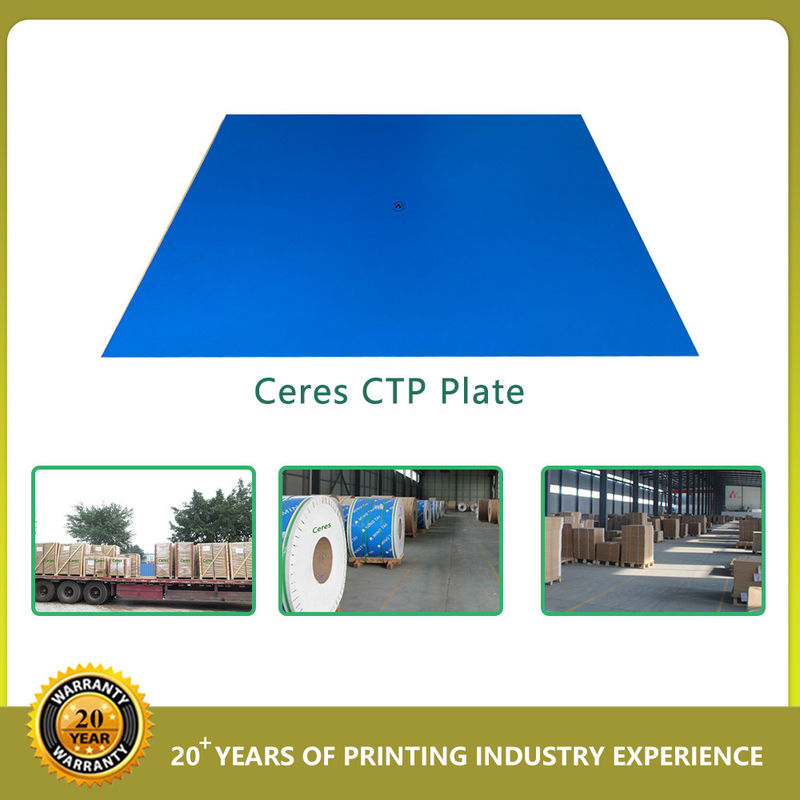

Aluminum Offset‑Flexographic CTP Plate Product: Positive thermal CTP plate, electro‑grained anodized aluminum base. Suitable for commercial printing, publication and packaging offset printing, compatible with conventional and UV inks.
1. Sensitivity / Laser Energy & Press Run‑length Specification Table
表格
| Item |
Specification |
Remarks |
| Spectral sensitivity |
800‑850 nm |
For 830 nm thermal‑laser CTP platesetters |
| Exposure laser energy |
110‑130 mJ/cm² |
Adjust according to platesetter and processing conditions |
| Resolution |
1%‑99% @200 lpi; 10 μm FM screening |
Limited by imaging capability of CTP equipment |
| Press run‑length (conventional ink, no baking) |
≥300,000 impressions |
Coated‑paper under standard printing conditions |
| Press run‑length (UV ink, no baking) |
≥50,000 impressions |
Higher abrasion under UV‑ink application |
| Press run‑length (after baking) |
≥500,000 impressions |
Baking condition: 230‑250 ℃, 5‑8 min with baking gum. Actual output varies with paper, ink and printing pressure. |
| Safe‑light condition |
White‑room operable |
No darkroom required; short‑time handling under normal workshop light is acceptable |
2. Substrate Thickness, Roughness and Grain Micro‑information
表格
| Item |
Specification |
| Aluminum substrate |
1060 aluminum alloy, electro‑chemically grained plus anodized treatment |
| Available thickness |
0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm, 0.40 mm |
| Surface roughness Ra |
0.4‑0.7 μm |
Electro‑grain SEM micrograph: Insert SEM photo showing uniform fine porous anodized surface. Fine and even grain improves coating adhesion and hydrophilicity, reduces scumming and stabilizes dot reproduction.
3. Compatible CTP Platesetters & Plate Processor Quick Reference
This plate is compatible with most mainstream 830 nm thermal CTP platesetters and thermal developing chemicals / processors.
Compatible CTP Platesetters
‑ Kodak: Trendsetter, Lotem, Magnus series ‑ Screen: PT‑R series ‑ Heidelberg: Topsetter, Suprasetter ‑ Agfa, Creo, Amsky, Cron, Grafmac and other domestic thermal models
Compatible Processors & Developer
‑ Processor models: Glunz & Jensen, Wangchang, Hengyu, Cron etc. ‑ Compatible with mainstream thermal CTP developer. ‑ Standard developing condition: temperature 23±2 ℃; developing time 25‑30 sec.
Tip: Run small exposure‑and‑develop test for new batches before mass production to fine‑tune energy and processing parameters.
4. Sample & Comparison Material Notes
- Old‑vs‑new plate comparison: Left: conventional PS plate; Right: CERES thermal CTP plate. Compare dot edge, grain appearance and coating status.

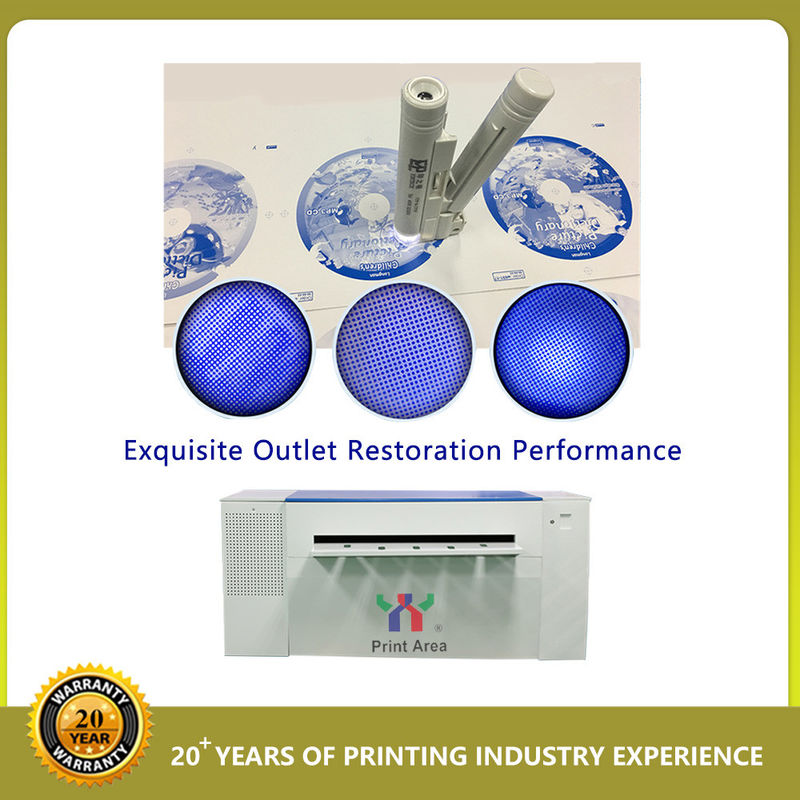

- Dot reproduction test sample: 200 lpi AM screen +10 μm FM screen test target to demonstrate 1%‑99% dot performance.
- High‑res real‑life product photos (≥5 pcs) ① Full carton outer‑package shot ② Unpacking view: black light‑proof inner bag and interleaving paper ③ Close‑up of plate coating surface ④ Cross‑section close‑up for thickness comparison (0.15 mm /0.30 mm) ⑤ Flat‑lay shot of multiple‑size plates

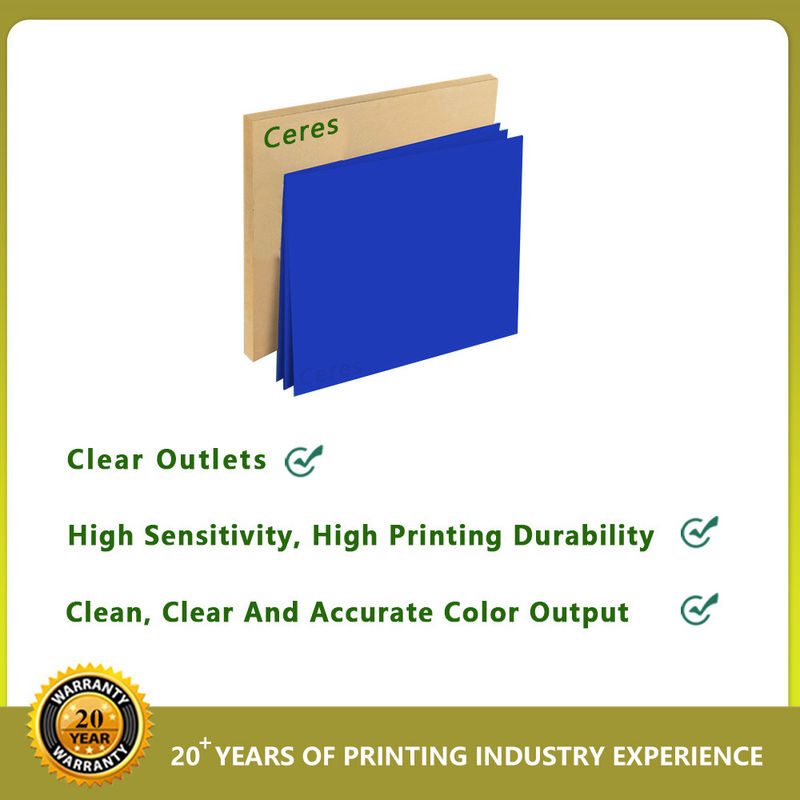

- Package photo: 50 pcs / carton, 100 pcs / carton, showing moisture‑proof and light‑proof packaging structure.
5. Storage Condition & Shelf‑life
表格
| Item |
Description |
| Storage temperature |
15‑25 ℃; avoid temperature above 30 ℃. High temperature causes coating degradation and fogging. |
| Relative humidity |
40‑60 % RH. High humidity leads to aluminum‑edge oxidation and mildew. Keep away from condensation and water sources. |
| Light‑proof requirement |
Keep original black inner bag and carton well‑sealed. Consume promptly after opening. Avoid direct sunlight and intensive UV fluorescent light. Short‑time handling under normal workshop light is allowed, do not leave plates exposed for long periods. |
| Shelf‑life |
18 months under unopened original‑package and standard storage conditions. |
| Stacking requirement |
Store flat. Do not bend or apply heavy pressure to prevent corner damage. |
Important note: Use within 2 months once opened. Oxidation white spots on plate edges indicate invalid storage.
6. FAQ
Q1: What is your MOQ? A: Regular order: 50 pcs or 100 pcs per carton. Test samples are available. Sample freight is on customer’s side and can be deducted from bulk orders.
Q2: What is your delivery time? A: In‑stock items: ship within 3 working days. Custom sizes / special specifications: approx. 20 working days upon receipt of advance payment.
Q3: What customization options do you provide? A: Custom cutting sizes, OEM private‑label packaging. Roll format / sheet format, interleaving‑paper selection and custom carton solutions are available.
Q4: What logistics options are available? A: International courier: DHL, FedEx, TNT, UPS, EMS. Sea‑freight or air‑freight for bulk cargo. Domestic trucking available. Payment terms: T/T, Western Union, Paypal.
Q5: Is plate baking mandatory? A: Baking is not necessary for short‑run jobs with conventional ink. Baking is strongly recommended for UV‑ink applications or runs exceeding 200 000 impressions to extend press life.
Q6: Which printing presses are compatible? A: Suitable for all sheet‑fed and web offset presses for commercial brochures, books, newspapers and packaging.
Q7: Scumming or dot loss occurs during printing? A: Check the following points: ① storage temperature & humidity; ② CTP exposure energy; ③ processor temperature / time / developer concentration; ④ water‑ink balance on press.
7. Competitor Comparison Table
表格
| Items |
CERES Thermal CTP Plate |
General Economy Domestic CTP Plate |
Top‑Tier Imported CTP Plate |
| Exposure energy |
110‑130 mJ/cm², wide exposure latitude |
130‑160 mJ/cm², narrow working window |
100‑120 mJ/cm², excellent latitude |
| Run‑length (no‑bake, conventional ink) |
≥300,000 impressions |
150,000‑220,000 impressions |
300,000‑350,000 impressions |
| Run‑length (no‑bake, UV ink) |
≥50,000 impressions |
20,000‑30,000 impressions |
60,000‑80,000 impressions |
| Run‑length (after baking) |
≥500,000 impressions |
250,000‑350,000 impressions |
500,000‑600,000 impressions |
| Grain & dot performance |
Fine uniform electro‑grain; stable 1‑99 % @200 lpi, good FM‑dot performance |
Uneven grain; fine dots tend to drop‑off |
Superior grain and dot reproduction |
| Equipment compatibility |
Works with most thermal CTP platesetters & processors |
Unstable performance on older machines |
Full‑range compatibility |
| Price level |
Mid‑range, high cost‑performance |
Entry‑level low cost |
Premium high price |
| Key advantages |
Near‑import‑grade performance, wide exposure latitude, stable water‑ink balance. Ideal for commercial and export‑oriented printing plants. |
Low procurement cost |
Top‑level performance with high purchasing cost |
Core selling points: High press run‑length, broad exposure latitude, strong equipment compatibility and outstanding overall cost‑performance. Well‑suited for commercial, publication and packaging export‑oriented printing orders.
8. Customer Cases & Feedback
- Southeast‑Asia commercial printing house: Used for catalog and poster printing. Stable 250‑280 000 impressions under conventional ink. Low scumming rate. Serves as cost‑saving alternative to imported plates.
- Middle‑East packaging printer: UV‑ink carton production. Over 450 000 impressions after baking with reliable lead‑time performance.
- Africa newspaper web printer: 0.30 mm heavy‑gauge plates for web press, good mechanical durability for mass newspaper output.
- South‑American small‑to‑mid‑size printing shop: Good energy tolerance, runs reliably on aging CTP machines for mixed short‑run orders.
Customer testimonial: “We switched to CERES thermal CTP plates to replace imported brand. Run‑length meets our expectation, dot reproduction is stable. Cost‑effective for our commercial sheet‑fed offset shop.”
Basic Product Information
‑ Origin: Guangdong, China ‑ Brand: CERES ‑ Type: Positive Thermal CTP Plate ‑ Material: Electro‑chemically grained & anodized aluminum substrate ‑ Packing: 50 pcs / carton, 100 pcs / carton; custom packing available ‑ Supply capacity: 1 000 cartons per week
