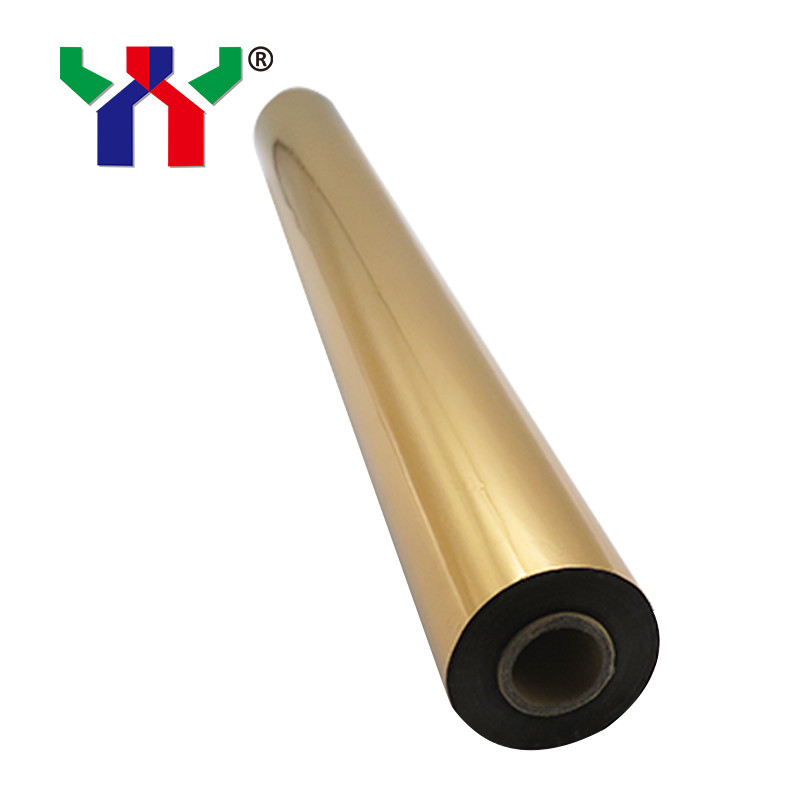

Gold Metallic Color Heat Transfer Lamination Hot Stamping Foil
1. Specifications:
1) Thickness: 23 micron, 26 micon
2) Maximum Width: 1500mm
3) Length: 3000 m/roll
4) Packaging: 3 or 6 inch paper core, carton
5) Delivery: 15 days after receiving the deposit
2. Feature:
1) High gloss / holographic effect( hologram laminate high gloss)
2) Smooth and clear surface
3) Strong color fastening performance
4) Superior bonding strength
5) Easy to use
3. Usage:
Gift wraps /Decorative/Lamination with board & paper, It's widely used in all kinds of high grade packaging and wrapping,wine, medicine, cosmetic, flower and other field depend on customer design.
Details:
| Base Material |
PET |
| Normal size |
12microns*64cm*120m,25microns*75cm*120m,12microns*150cm*1000m
|
| MOQ |
100 rolls/color |
| Width |
45cm/64cm/90cm/150cm/customized |
| Length |
120m/240m/300m/6000m/customized |
| Packing |
10rolls/carton(0.64*10m/roll)/customized |
| Carton size |
650mm x 335mm x 14mm |
| G/N Weight |
17KGS/CTN,15KGS/CTN |
| Stamping Presure |
6-12KG |
| Stamping Temperture |
90-140 degree |
| Stamping Time |
0.2-0.6s |
| Delivery Time |
Within 3 days based on inventory, 10~15 days for bulk order |
| Sample |
Free samples can be offered |
| Application |
Use for paper,plastic,textile,leather,fabric,garment,etc |
1. Metallic Color Swatch & Surface Finish Comparison (Gloss / Matte / Tactile)
| Finish Type |
Visual & Tactile Feature |
Suitable Scenario |
| Gloss Metallic |
High mirror‑like reflectivity, bright metallic luster, smooth touch |
Luxury gift box, cosmetic packaging, book cover, high‑end label |
| Matte Metallic |
Low‑gloss subdued metal texture, anti‑fingerprint, soft visual effect |
High‑grade wine box, medicine packaging, minimalist brand packaging |
| Tactile Velvet Metallic |
Soft velvet haptic feeling, low reflection, premium touch |
Premium gift packaging, luxury stationery |
Available color series: Bright gold, matte gold, bright silver, matte silver, holographic laser, rainbow iridescent; custom special metallic tones supported.
2. Adhesion & Physical Test Data
| Test Item |
Test Result |
Test Condition |
| Cross‑cut Adhesion Test |
Grade 4‑5 (ASTM D3359) |
Hot‑stamped on coated cardboard, tape pull‑off test, minimal foil peeling |
| Abrasion Resistance |
≥350 cycles |
500 g loading Taber abraser on paper substrate |
| Alcohol rub resistance |
≥40 double rubs |
95% ethanol wiping test, no metal‑layer falling off |
| Heat‑resistance |
No delamination @160 ℃ / 30 min |
Constant‑temperature oven test |
| Recommended stamping temperature |
90‑140 ℃ |
Dependent on substrate type |
| Recommended stamping pressure |
6‑12 kg |
Flat‑press hot‑stamping machine |
| Dwell stamping time |
0.2‑0.6 s |
Standard production parameter |
Note: Adhesion performance is affected by substrate surface tension, stamping temperature, pressure and dwell‑time. Pre‑production press test is strongly recommended.
3. Full Specification Table (Thickness / Width / Length / Paper‑core)
表格
| PET Base Thickness(μm) |
Available Width(mm) |
Available Roll Length(m) |
Paper‑core Size |
| 18 μm |
450 / 640 / 900 / 1500 / custom |
120 / 250 / 300 / 1000 / custom |
3‑inch / 6‑inch |
| 21 μm (Standard stock) |
450 / 640 / 900 / 1500 / custom |
250 (stock) / 120 / 3000 / custom |
3‑inch / 6‑inch |
| 24 μm |
450 / 640 / 900 / 1500 / custom |
120 /250 / 3000 / custom |
3‑inch / 6‑inch |
| 27 μm |
450 / 640 / 900 / 1500 / custom |
120 /250 / 3000 / custom |
3‑inch / 6‑inch |
- Standard stock dimension:640 mm width × 250 m / roll, 21 μm thickness, 3‑inch paper‑core
- Package per carton:10 rolls / export carton; Gross weight 17 kgs / carton, Net weight 15 kgs / carton
4. Compatible Substrate & Equipment Look‑up Table
Substrate Compatibility List
| Substrate Type |
Compatibility |
Remarks |
| Coated paper, cardboard, book‑cover paper |
✅ Excellent |
Main application for gift‑box & publication hot‑stamping |
| Gold‑silver card, laminated BOPP paper |
✅ Good |
Tobacco & wine packaging |
| Treated‑PET / PVC plastic sheet |
✅ Good |
Plastic label, PVC card printing |
| Genuine / synthetic leather |
⚠️ Conditional |
Adjust temperature & pressure parameter |
| Textile / fabric |
⚠️ Conditional |
Special adhesive formula required, please consult sales |
| Untreated‑PP / PE |
❌ Poor adhesion |
Need surface corona pretreatment or primer |
Compatible Hot‑stamping & Lamination Equipment
| Equipment Type |
Typical Machine Models |
Remarks |
| Flat‑bed hot stamping machine |
Heidelberg hot‑foil unit, TYMB series, manual / auto flat press |
Most‑widely used for paper‑carton jobs |
| Rotary hot‑stamping machine |
Round‑press‑round high‑speed foil stamping press |
For large‑volume continuous packaging production |
| Heating laminator machine |
Thermal laminating machine for foil transfer |
Suitable for large‑area full‑surface metallic lamination |

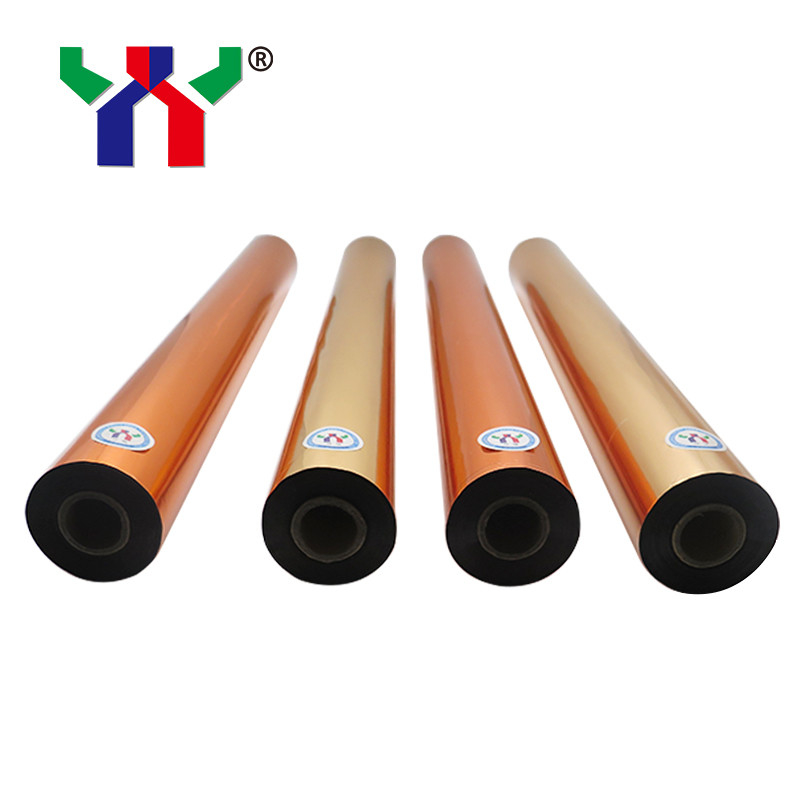

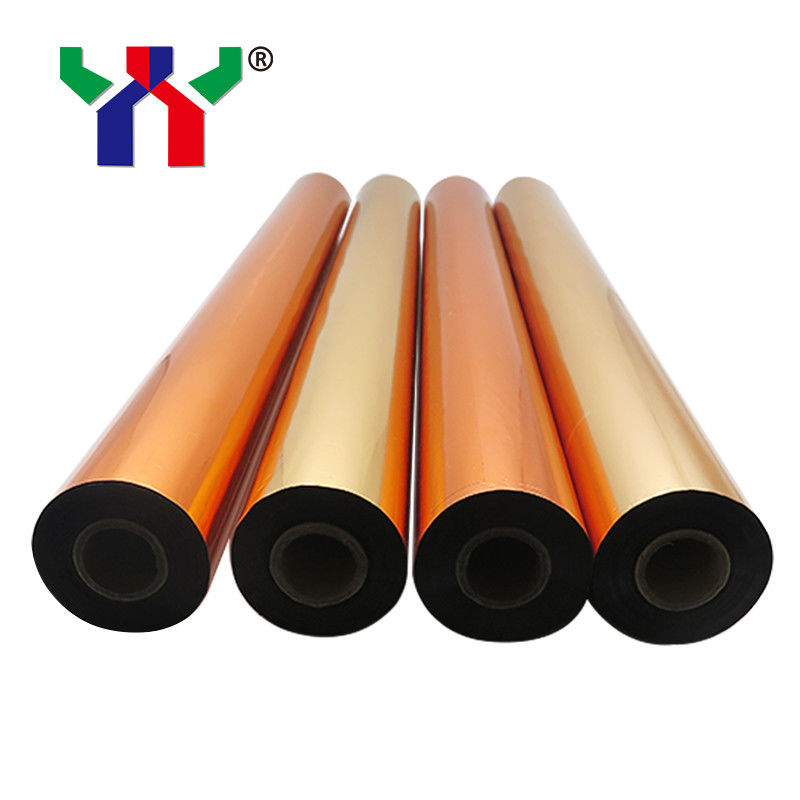

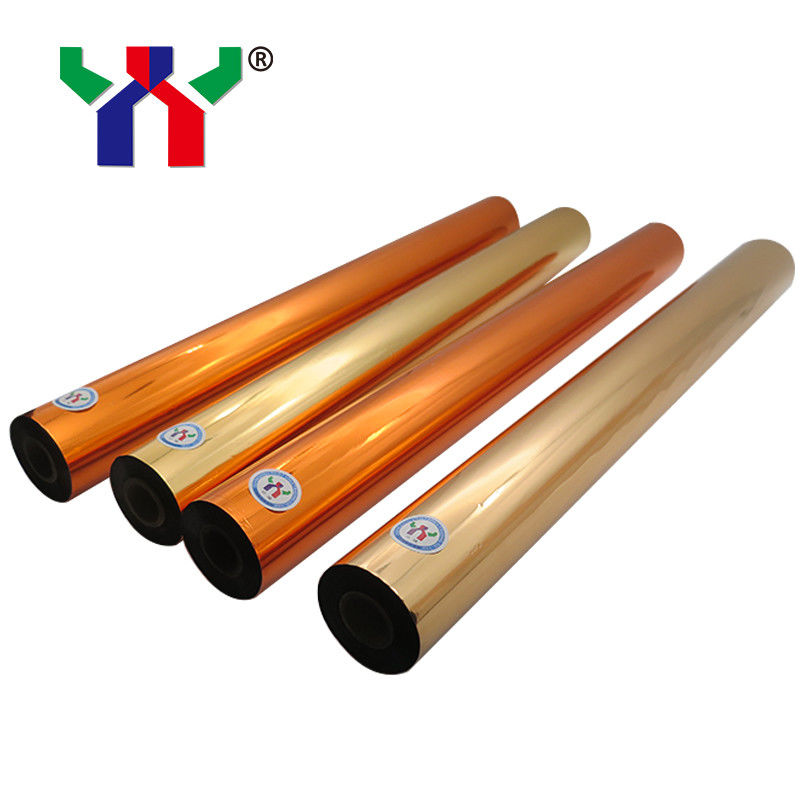

5. Product Real‑shot & Package Picture Notes (≥5 images)
6. Storage Condition
| Item |
Specification |
| Storage Temperature |
15‑25 ℃; avoid high‑temperature warehouse above 30℃, far from heat source |
| Relative Humidity |
40‑65 % RH; keep warehouse dry & ventilated |
| Storage posture |
Store rolls horizontally; prohibit vertical standing, heavy squeezing or folding to avoid crease & wrinkle |
| Shelf‑life |
12 months under unopened original‑package condition |
| After‑opening suggestion |
Use up within 6 months; avoid direct sunlight & UV radiation exposure |
Warning: Wrinkles, deformation or adhesive‑layer failure will occur under improper storage, stop using defective rolls.
7. FAQ Frequently Asked Questions
Q1: What is MOQ? A: Standard stock MOQ: 1 roll. Custom‑cut special size / special‑color MOQ: 10 rolls per color. Free sample pieces can be provided for press test, customer bears freight cost.
Q2: What is delivery lead‑time? A: In‑stock standard dimension: ship within 5‑8 working‑days after payment. Custom slitting / custom color formula: 10‑15 working‑days.
Q3: What customization service do you provide? A: Custom slitting width & roll length; custom metallic finish(gloss/matte/tactile); holographic / rainbow special‑effect foil; OEM carton marking.
Q4: Logistics & shipping options? A: Courier: DHL, TNT, FEDEX, UPS, EMS. Large‑tonnage bulk goods can choose sea‑freight or air‑freight. Payment terms: T/T, Western Union.
Q5: Foil cannot transfer completely, missing pattern? A: Check points: 1) Insufficient stamping temperature / pressure / dwell‑time; 2) Substrate surface tension too low; 3) Foil model mismatches substrate. Raise temperature or pressure appropriately, run small test first.
Q6: Foil generates wrinkles during stamping process? A: Check foil‑roll tension control; ensure roll unwinding is smooth; avoid too‑fast machine speed; check if foil roll itself has storage‑caused crease.
Q7: Can this 21 μm metallic foil be used on leather & fabric? A: It can work on synthetic leather with parameter adjustment; for textile fabric you need our fabric‑special adhesive‑formula foil, please contact sales for recommendation.
8. Competitor Comparison Table
表格
| Comparison Item |
CERES 21 μm Metallic Hot‑stamping Foil |
General domestic economical metallic foil |
Import premium metallic hot‑stamping foil |
| PET Base Thickness |
21 μm, stable tensile strength |
18‑20 μm, easy stretch under high‑speed production |
20‑22 μm premium PET substrate |
| Metallic luster |
High‑bright uniform metallic layer, less color deviation |
Uneven luster, partial dim area risk |
Mirror‑grade high‑gloss metallic performance |
| Cross‑cut adhesion |
Grade 4‑5, low peeling risk on paper & PVC |
Grade 2‑3, easy partial peeling |
Grade 5 excellent bonding performance |
| Abrasion resistance |
≥350 cycles |
180‑250 cycles |
≥450 cycles |
| Process‑window |
Wide temperature‑pressure adaptability, stable for flat & rotary machine |
Narrow working‑window, sensitive to temperature fluctuation |
Very wide process latitude |
| Available finish |
Gloss / Matte / Tactile velvet / holographic / rainbow |
Mainly gloss gold & silver; limited special‑effect option |
Full series surface‑finish options |
| Price‑level |
Mid‑range cost‑effective |
Low‑cost entry‑level |
High premium price |
| Core‑advantages |
Stable 21 μm PET base; uniform metallic coating; good comprehensive adhesion for paper, cardboard and plastic; multiple surface‑finish options, cost‑saving replacement for imported foil |
Low purchase‑cost, unstable luster & poor abrasion resistance |
Top‑tier luster & durability, high procurement‑cost |
Core selling‑point: 21 μm high‑quality PET‑based metallic hot‑stamping foil, uniform bright metallic luster, good adaptability for flat‑bed & rotary hot‑stamping machine; widely used for high‑grade gift‑box, tobacco‑wine, cosmetic, book‑cover packaging.
9. Customer Cases & Testimonials
- South‑East‑Asia luxury packaging printing factory Applied for cosmetic gift‑box hot‑stamping. 21 μm gold metallic foil, stable transfer effect under rotary high‑speed stamping, good alcohol‑rub resistance, meets export packaging requirement.
- Middle‑East publishing & book‑cover printer Used for hard‑cover book gold hot‑foil decoration; clear pattern edge, low wrinkle rate, improves finished‑product appearance grade.
- South‑America carton & label converter Fit for mixed paper and PVC‑card jobs; wide process window, works well on both auto flat‑press and semi‑manual hot‑stamp equipment.
Customer feedback quote: “The CERES 21mic metallic hot stamping foil delivers bright uniform gold luster. Stable transfer performance on our packaging hot‑stamping line, it is a good economical substitute for imported foil.”
Basic Original‑page Product Information
‑ Place of Origin: China ‑ Brand Name: Ceres ‑ Base Material: PET ‑ Standard Spec: 64cm width × 250 meter / roll, 21 micron ‑ Thickness options:18mic /21mic /24mic /27mic ‑ MOQ: 1 Roll ‑ Delivery Time: 5‑8 days ‑ Payment Terms: T/T, Western Union ‑ Supply Ability: 1 Ton per Month
