Place of Origin:
China
Brand Name:
Ceres

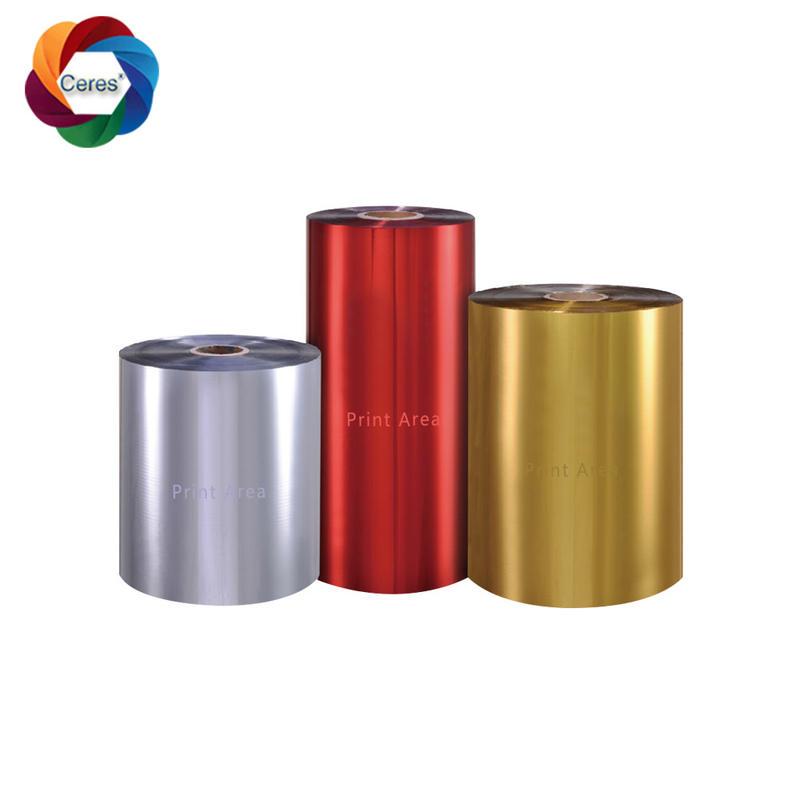

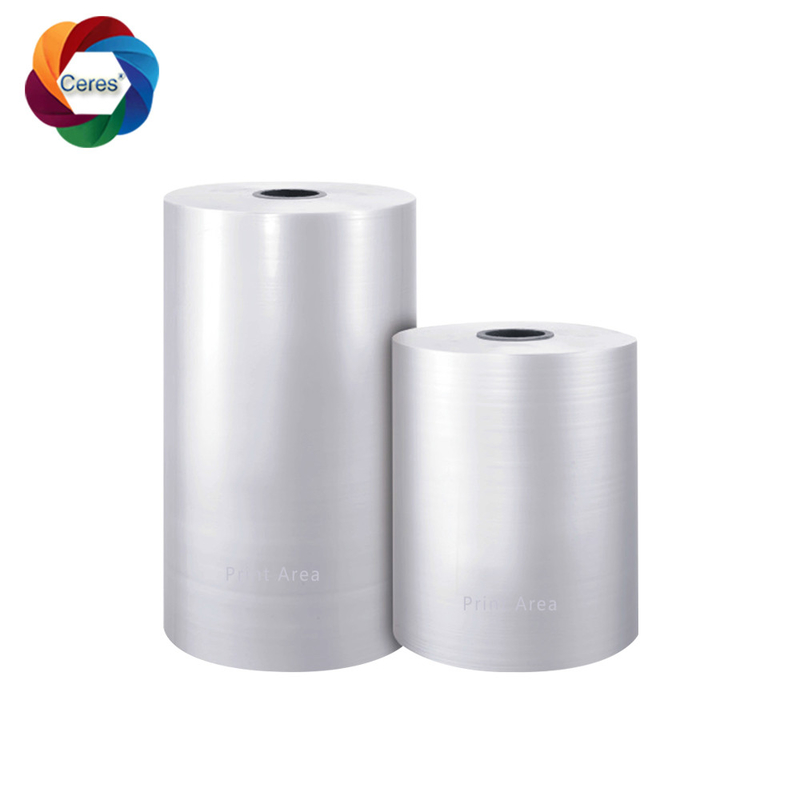

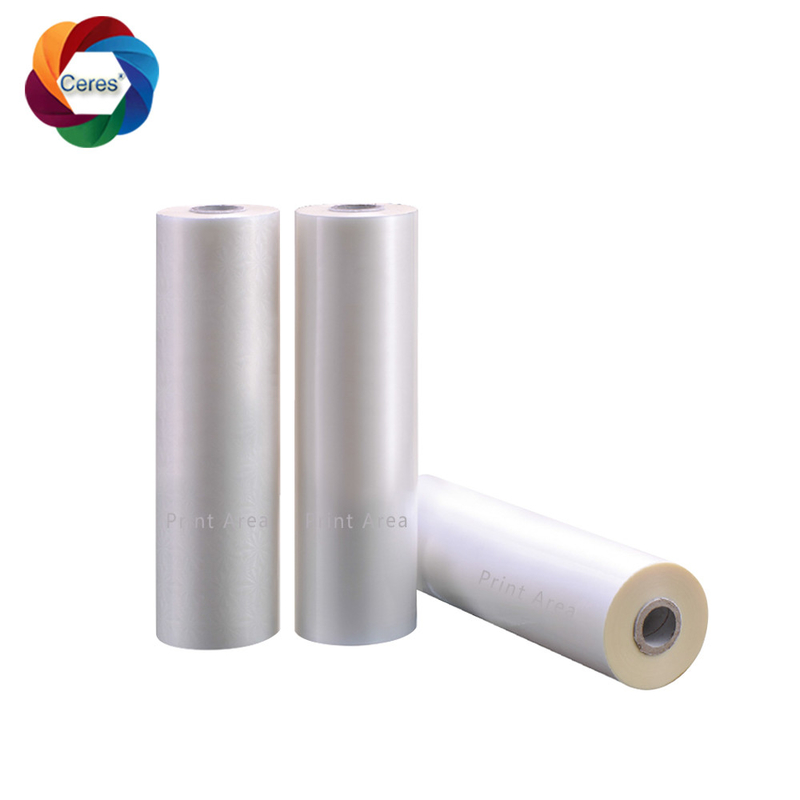

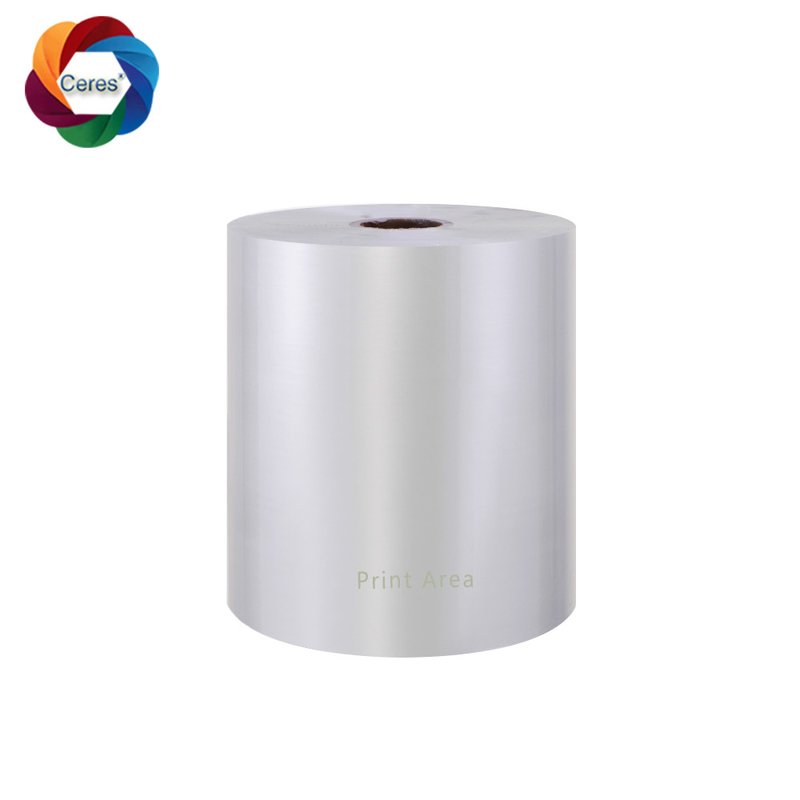

Hot Stamping Film Bopp Thermal Lamination Glossy / Matt Film
Application:
1. Cover on the paper, for example: Books, Magazines,Calendars and Maps,etc.
2. Any types of boxes, for instance: Gift boxes.
3. Medicine,Advertisements,Cosmetics,Digital printing and showing board.
Characteristic:
1. good processibility
2. high cleanliness
3. no soft flocks produced in the die cutting process
4. show ultralight and stable release force for all kinds of pressure sensitive adhesive
| TYPE | THICKNESS (micron) | ||
| GLOSSY | TOTAL | BASE | EVA |
| 17 | 12 | 5 | |
| 18 | 12 | 6 | |
| 20 | 12 | 8 | |
| 22 | 12 | 10 | |
| 23 | 15 | 8 | |
| 25 | 15 | 10 | |
| 27 | 15 | 12 | |
| 30 | 15 | 15 | |
| 42 | 28 | 14 | |
| WIDTH (mm) | 200 ~ 2210 | ||
| LENGTH (m) | 100 ~ 8000 | ||
| PAPER CORE | 25.4mm(1 inch) / 76mm (3 inch) | ||
| BONDING | ≤2 | ||
| CORONA TREATED | Double side | ||
| SURFACE TENSION | 38 Dyne/cm ≤ 42 Dyne/cm | ||
| LAMINATION TEMP. | 90±10°C | ||
| ROLLER PRESSURE | 10 ~ 20Mpa | ||
| LAMINATION SPEED | 20 ~ 70M | ||
![]()
![]()
![]()
![]()
