Uv Screen Printing Varnish For Hot Stampling On Paper
Applications:
Pre-treated plastics films – PE, PP, PET, Paper, Carton,
OPV Properties
ITX- benzophenone,4-methylbenzo-free, Free from Bisphenol A, Reactive, gloss, braille 150-250 um
Cured OPV Properties
high water resistance, immediate further processing
Approximate speed of the machine: 25 m/min
Product:CERES YY Water‑System UV screen printing hot‑stampable varnish; ITX‑ / Benzophenone‑ / 4‑MBP‑free, BPA‑free, low‑odor high‑concentration glossy UV OPV, supports braille embossing thickness 150‑250 μm, instant post‑processing for hot‑foil stamping on paper & treated plastic films.
1. Coating Weight & Film Thickness Specification Table
表格
| Item |
Specification |
Remarks |
| Wet coating weight |
12‑22 g/m² |
Depends on screen mesh |
| Dry film thickness |
150‑250 μm |
For braille / tactile embossing effect |
| Recommended screen mesh |
80‑150T screen mesh |
Flat‑bed / rotary screen printing |
| Max machine running speed |
25 m/min |
Mercury UV lamp curing condition |
| Curing energy requirement |
180‑240 mJ/cm² |
Medium‑pressure mercury lamp; partial LED‑UV available, on‑press test required |
Note: Thicker film requires higher UV energy; final physical resistance reaches optimum after 24‑h post‑curing.
2. Gloss (GU) & Abrasion / Scratch Resistance Test Data
表格
| Test Item |
Test Result |
Test Condition |
| 60° Gloss Value |
88‑93 GU |
Paper cardboard substrate, 200 μm dry film |
| Pencil Hardness |
2H‑3H |
Pencil scratch test ASTM D3363 |
| Abrasion resistance |
≥450 cycles |
500 g friction load, Taber abraser |
| Water resistance |
Grade 4‑5 |
24‑h water immersion test, no blistering / peeling |
| Hot‑stamp adaptability |
Excellent |
Hot‑stamp temp:160‑180 ℃, compatible with common hot‑stamping foil |
| Outdoor weather resistance |
Medium |
Not recommended for long‑term outdoor exposure |
Remark: Gloss & abrasion performance vary by substrate, screen mesh and curing condition.
3. Packaging Specification Guide (Bottle / Barrel / Drum), Storage & Shelf‑life
Packaging Options
表格
| Packing Spec |
Description |
Best‑fit Scenario |
| 1L plastic bottle |
Small‑volume lab trial & sample test |
MOQ 1L for testing; small‑batch trial production |
| 5L plastic jerry‑can |
Medium‑size workshop usage |
Small‑medium printing factory daily consumption |
| 20L /25L black jerry‑can(standard bulk) |
Default bulk export packing; 4‑6 cans per outer carton |
Mass continuous production; MOQ 1 barrel |
| OEM custom packing |
Custom‑label sticker & custom outer carton |
Reseller / brand‑customer; OEM MOQ 100L |
Storage Condition & Shelf‑life
表格
| Item |
Specification |
| Storage Temperature |
15‑25 ℃; strictly avoid >30 ℃ high‑temperature warehouse; keep far from direct sunlight & UV‑light radiation |
| Relative Humidity |
40‑65 % RH; warehouse dry & ventilated; avoid heat source |
| Sealing requirement |
Keep containers tightly sealed to prevent partial polymerization. Tighten lid immediately after opening each use. |
| Shelf‑life |
12 months for unopened original‑pack under standard storage |
| Opened‑container usage suggestion |
Consume within 3‑4 months after opening; filter before use if sediment appears. |
Warning: Gelling, thickening or stratification before expiry indicates improper storage; discontinue usage.
4. Compatible Printing Method Quick‑lookup & Substrate Compatibility
Printing‑method Compatibility
表格
| Printing Method |
Compatibility |
Remarks |
| Flat‑bed / Rotary Screen Printing |
✅ Highly Recommended |
Primary process for thick‑film braille & hot‑stamp varnish |
| Offset Printing |
⚠️ Conditional |
Only for thin‑film spot OPV; viscosity adjustment required |
| Flexographic Printing |
❌ Not recommended |
Viscosity mismatch for anilox roller |
| Gravure Printing |
❌ Not recommended |
Not formulated for gravure application |
Substrate Compatibility
表格
| Substrate Type |
Compatibility |
Remarks |
| Coated paper, cardboard, gift‑box paper |
✅ Excellent |
Main application for hot‑stamping & braille effect |
| Pre‑treated PE / PP / OPP film |
✅ Good |
Film must complete corona pretreatment |
| PET / PVC sheet |
✅ Good |
Plastic label & packaging |
| Untreated PE / PP |
❌ Poor adhesion |
Primer coating required |

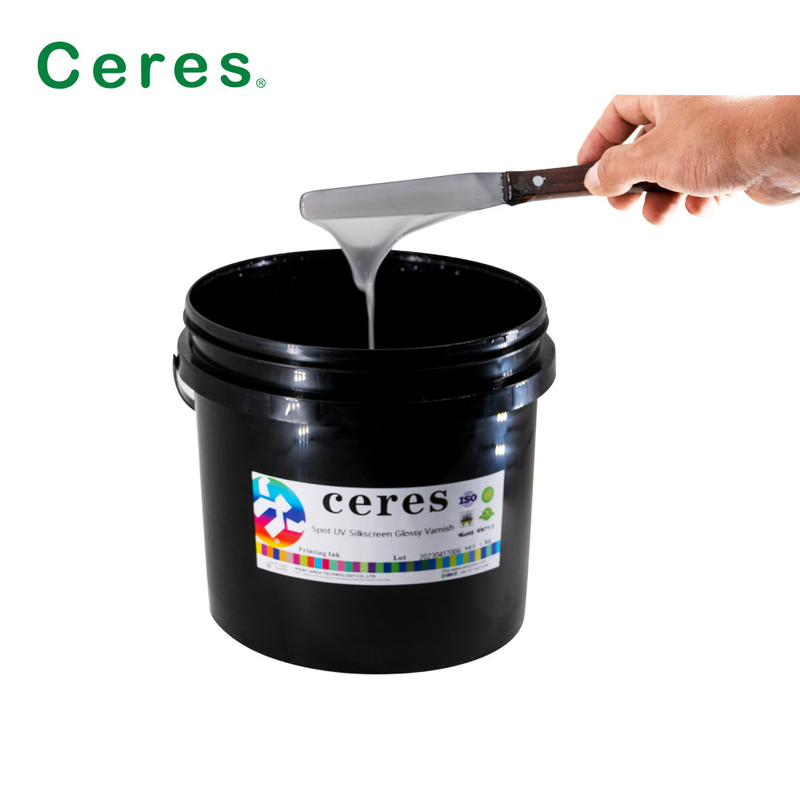

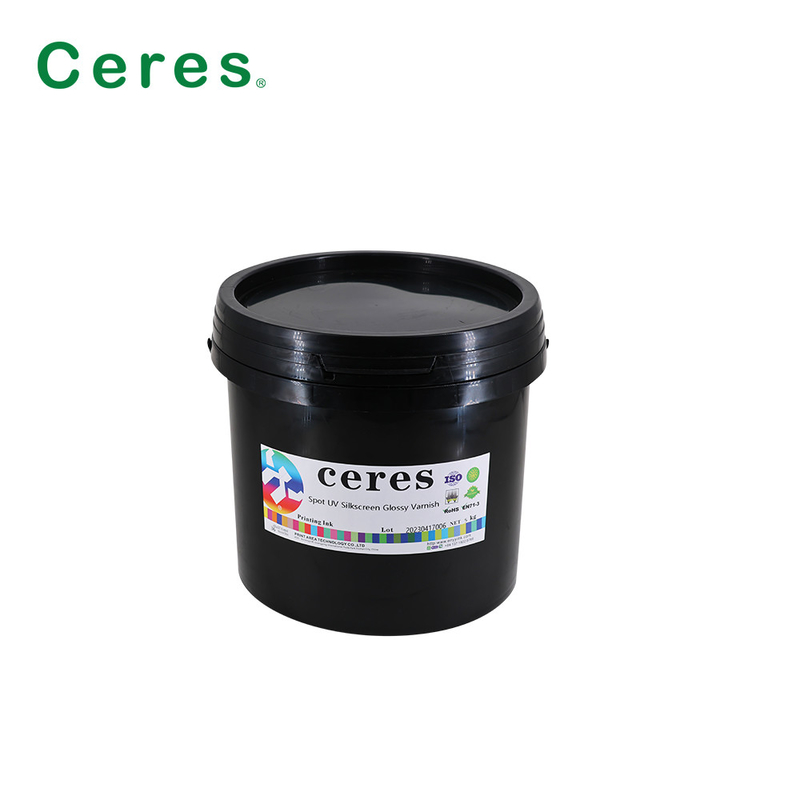

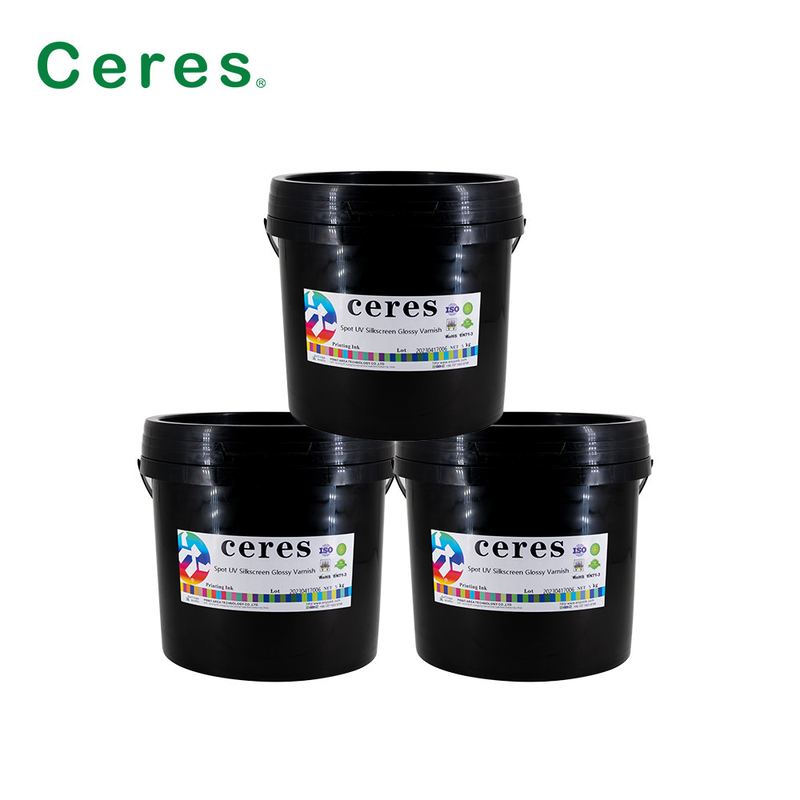

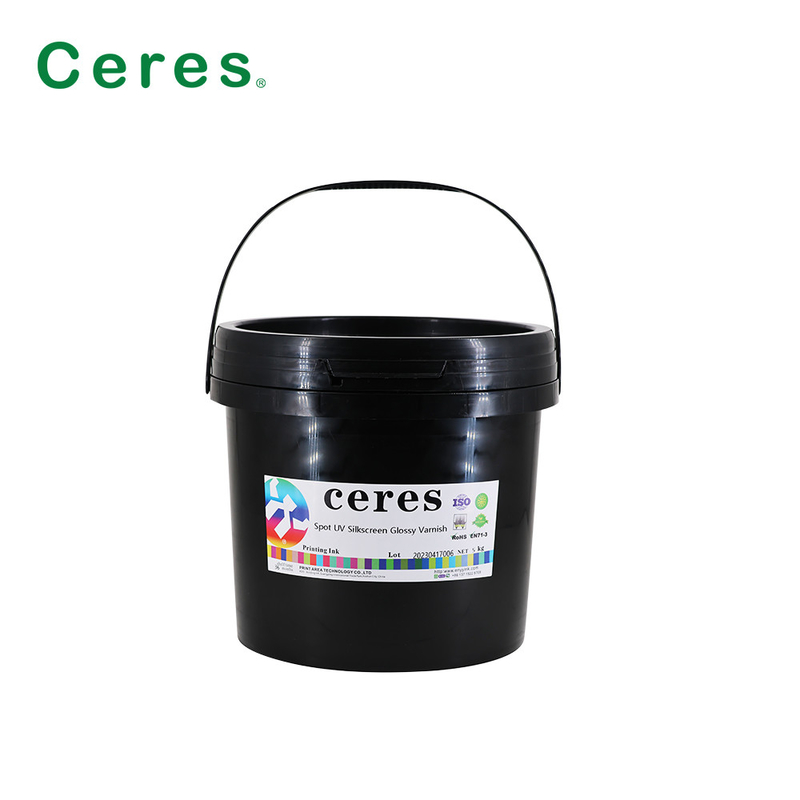

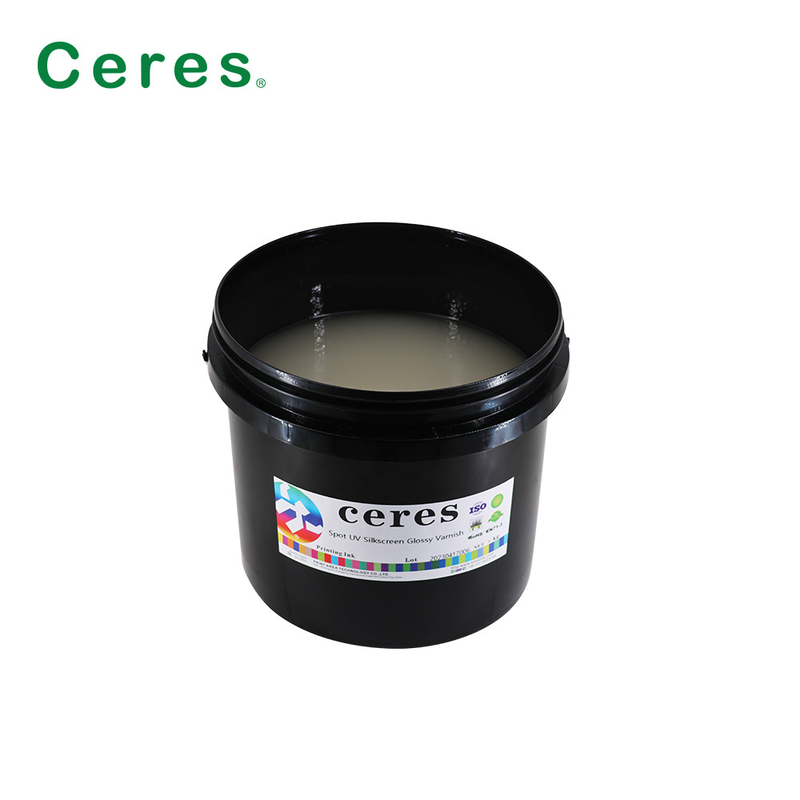

5. Product Real‑shot Photos & Package Picture Notes (≥5 images)
6. FAQ Frequently Asked Questions
Q1: What is MOQ? A: Minimum order quantity is 1 L for sample test; bulk‑order MOQ 1 barrel. Sample is available for press trial.
Q2: What is delivery lead‑time? A: Stock goods: ship within 3 working‑days after payment confirmed. Custom‑formula / OEM private‑label goods: 12‑16 working‑days.
Q3: What customization service do you provide? A: Adjust gloss level, modify viscosity for rotary‑screen, optimize hot‑stamping performance; OEM private‑label sticker & custom carton packing.
Q4: Logistics & shipping options? A: UV varnish belongs to chemical liquid goods. International courier: FedEx, TNT, DHL, UPS, EMS. Large‑volume bulk‑order choose sea‑freight or air‑freight. Payment terms: T/T, Western Union, Paypal.
Q5: Hot‑stamping foil cannot transfer cleanly after UV curing? A: Check: 1) UV over‑curing (excessive lamp power); 2) Varnish film thickness too thin; 3) Hot‑stamping temperature / pressure / speed mismatch; 4) Mismatched hot‑stamp foil grade. Adjust UV energy and hot‑stamp parameters accordingly.
Q6: Varnish surface is sticky after UV curing? A: Insufficient curing energy; increase UV lamp power or reduce machine running speed. Note full resistance property is achieved after 24‑h post‑curing.
Q7: Can I mix this varnish with other brand UV varnish? A: Not recommended. Different resin & photoinitiator systems may cause gelling, poor hot‑stamp performance. If mixing is unavoidable, run small‑scale lab test first.
7. Competitor Comparison Table
表格
| Comparison Item |
CERES YY UV Screen Hot‑stampable Varnish |
General domestic UV screen hot‑stamp varnish |
Import premium hot‑stamp screen OPV |
| Photoinitiator system |
ITX‑, Benzophenone‑,4‑MBP‑free, BPA‑free, low‑odor |
Contain residual ITX / benzophenone; strong odor |
Full low‑migration non‑ITX formula |
| Workable film thickness |
150‑250 μm, support braille tactile effect |
Max 120‑150 μm, difficult for thick braille layer |
150‑280 μm excellent thick‑film stability |
| 60° Gloss |
88‑93 GU |
78‑84 GU |
90‑95 GU |
| Abrasion cycles |
≥450 cycles |
250‑320 cycles |
≥500 cycles |
| Hot‑stamp performance |
Stable foil transfer @160‑180℃; immediate post‑processing |
Easy foil‑missing under thick‑film condition |
Perfect hot‑stamping result |
| Max machine speed |
25 m/min |
15‑18 m/min |
25‑35 m/min |
| Certification |
MSDS available, comply with REACH test |
Partial documents missing |
Complete food‑contact‑grade certification |
| Price‑level |
Mid‑range cost‑effective |
Low‑cost entry‑level |
High premium price |
| Core‑advantages |
Non‑ITX / BPA‑free low‑odor formula; supports thick‑layer braille tactile printing; instant hot‑stamp post‑processing; fits paper & pre‑treated plastic packaging, cost‑saving substitute for imported varnish |
Low procurement‑cost; limited thick‑film capacity, odor issue |
Top‑tier comprehensive performance, high purchasing‑cost |
Core selling‑point: Low‑odor non‑ITX/BPA‑free UV screen varnish, support thick‑film braille tactile effect, can be hot‑stamped immediately after UV curing; suitable for gift‑box, packaging braille‑mark and hot‑foil‑decorated paper & pre‑treated plastic films.
8. Customer Cases & Testimonials
- South‑East‑Asia gift‑box packaging printing factory Used for braille tactile‑mark + hot‑stamping composite‑process on cardboard. 180‑220 μm thick‑film screen printing, stable gloss and clean hot‑foil transfer, meets local environmental‑material requirement.
- Middle‑East cosmetic packaging converter Applied on corona‑treated PET packaging sheet. Low‑odor, good water‑resistance; immediate hot‑stamp post‑processing improves production‑line efficiency.
- South‑America label printing‑plant Suitable for mixed paper & treated‑PP short‑run jobs; stable performance on rotary‑screen machine, reduces reject‑rate for braille‑label production.
Customer feedback quote: “This UV screen hot‑stampable varnish works great for our braille and foil‑stamping packaging jobs. ITX‑free low‑odor formula, stable thick‑film performance, good alternative for high‑cost imported varnish.”
Basic Original‑page Product Information
‑ Place of Origin: China ‑ Brand Name: Ceres, YY ‑ Model Number: Water‑based UV screen printing varnish ‑ Color: Transparent ‑ MOQ: 1 Liter ‑ Package: 5L/barrel, 20L/barrel, 25L/barrel ‑ Supply Ability: 1000 Liters per Week ‑ Delivery Time: within 3 working days after payment ‑ Payment Terms: T/T, Western Union, Paypal
| Ink system: |
UV-curable |
| Curing: |
fast |
| Degree of gloss : |
glossy |
| Opacity: |
-- |
| Outdoor resistance: |
medium |
