Gripper Bar Offset Printing Machine Spare Parts Heidelberg Hickey Pickers GTO 52

Gripper Bar Offset Printing Machine Spare Parts Heidelberg Hickey Pickers GTO 52

Gripper Bar Printing Machine Spare Parts

Hickey Pickers Printing Machine Spare Parts

GTO 52 offset printing parts

Place of Origin:

Guangdong, China (Mainland)

Brand Name:

yy

Contact Us
Request A Quote
Product Details
Type:
Printing Spare Parts
Use:
For Heidelberg Printer
Printing Type:
Offset Printing Machine
Model:
Gto52
Material:
Metal
Quality:
Excellent 100% Tested
Moq:
1 Pcs
Highlight:

Gripper Bar Printing Machine Spare Parts

,

Hickey Pickers Printing Machine Spare Parts

,

GTO 52 offset printing parts

Payment & Shipping Terms
Minimum Order Quantity
1 Piece/Pieces
Price
Negotiation
Packaging Details
10pcs/bag
Delivery Time
within 3 working days after payment
Payment Terms
T/T,Western Union,,paypal
Supply Ability
5 pcs per day
Product Description

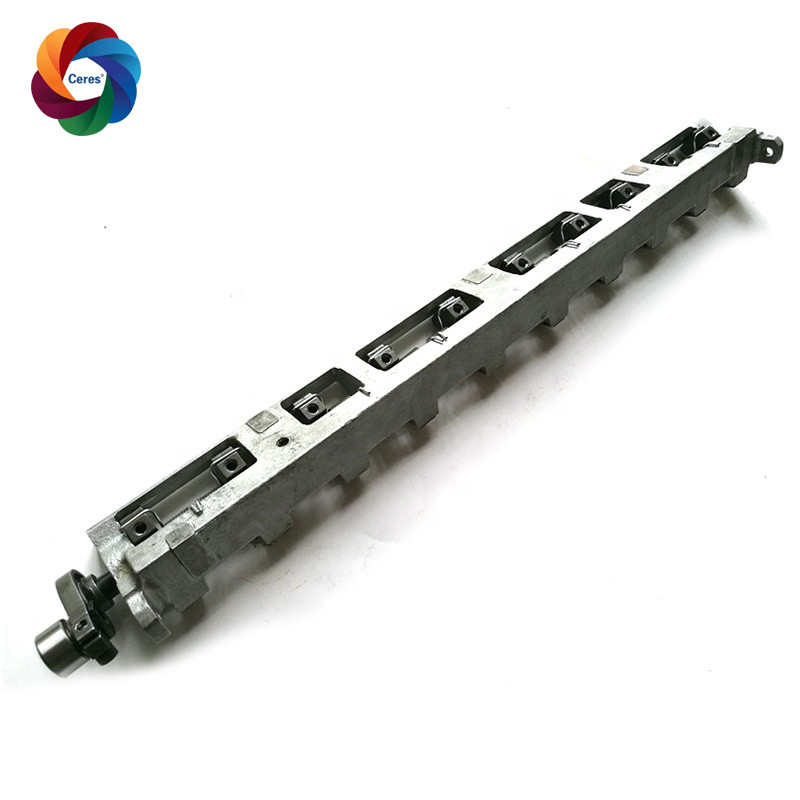

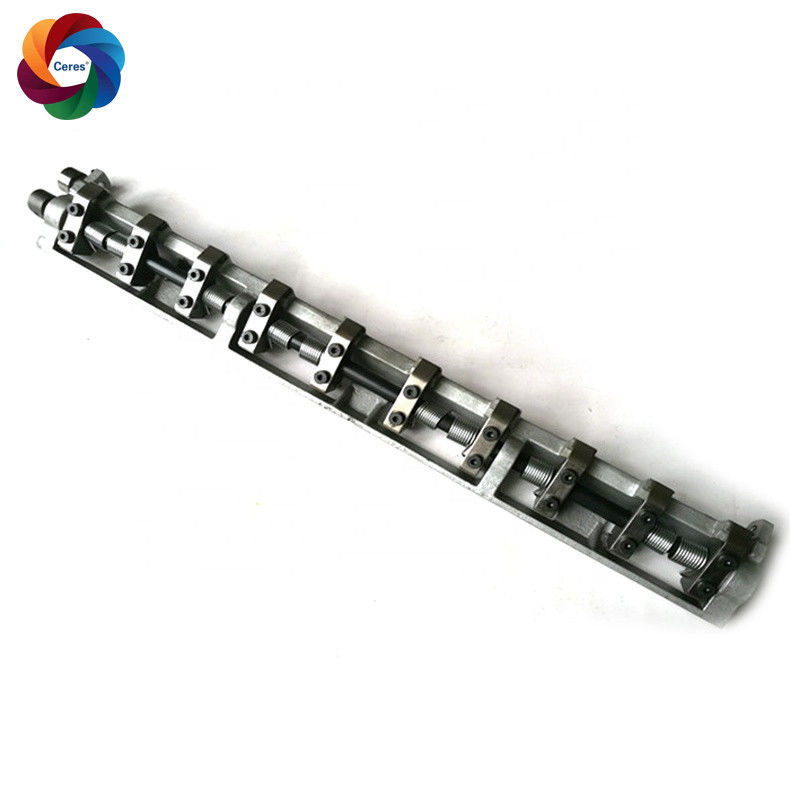

Gripper Bar For Heidelberg Assembly GTO 52 Offset Printing Parts



Specifications



1.Hickey Pickers
2.Heidelberg spare parts
3.Perfect quality





Information:

Gripper bars are subject to numerous stresses. These increase with the weight of the moving pieces. And, of course, more stress mean more maintenance, risk of interruption and reduced machine availability.

The design has also been improved. New technical solutions have been developed, the mechanical design has been improved and new grippers have been fitted, improving take-up of the sheet.



We professionally provide many kinds of spare parts of printing machine for international brands such as Heidelberg, Roland, Komori and so on. With high quality and competitive price

Product Overview & Key Specifications

Attribute
Value
Product
Gripper bar / hickey picker assembly
Brand
yy / Ceres
For machine
Heidelberg offset press
Model (title)
GTO 52

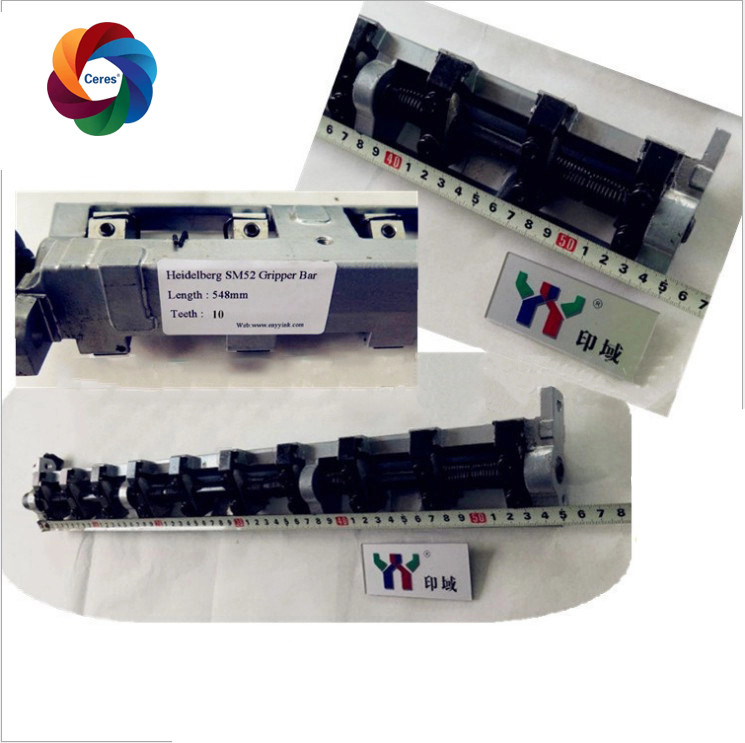

Model (product label)
Heidelberg SM52 gripper bar
Length
548 mm
Teeth / grippers
10
Material
Metal
Quality
Excellent, 100% tested
MOQ
1 pc
Packing
10 pcs / bag
Delivery
Within 3 working days after payment
Payment
T/T, Western Union, PayPal
Supply ability
5 pcs / day

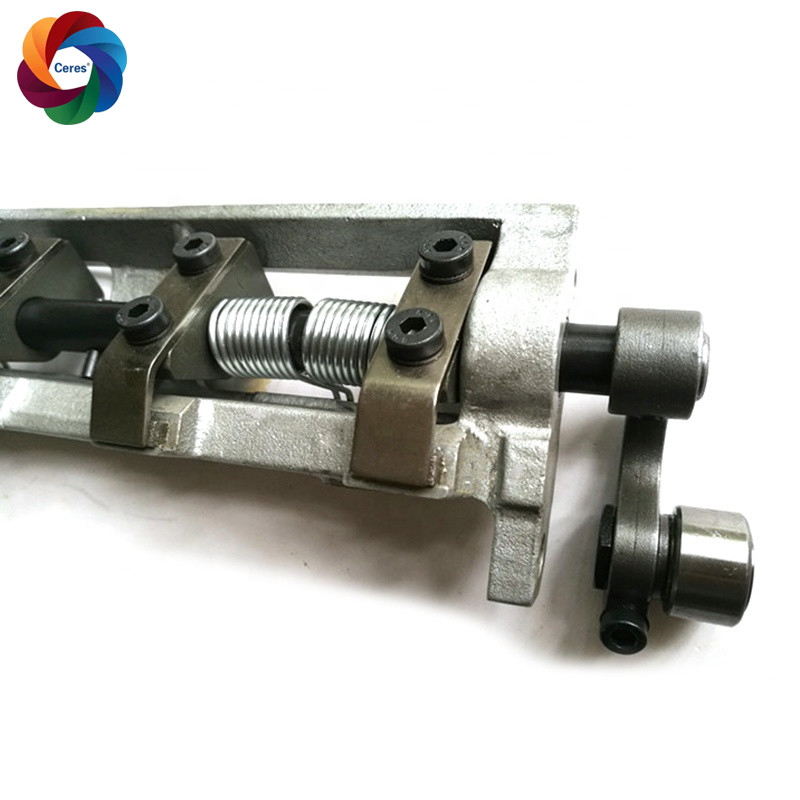

Installation Position & Gripper-Bar Structure

Part (structure)
Function
Gripper bar body
Long metal beam that pivots on the cylinder; holds all gripper blocks.
Gripper finger / tooth
Hardened jaw that bites the sheet edge; 10 teeth on this bar.
Return spring
Closes the gripper finger and sets gripping pressure.
Cam follower / roller
Rides the cylinder cam to open/close the grippers at the correct angle.
Mounting screws / pivot
Fix the bar to the cylinder gripper shaft.

Wear Inspection Method

Check point
What to look for
Gripper tooth contact
Worn / rounded jaw face marks; uneven bite on the sheet (slip, register drift, torn tail edge).
Spring tension
Fatigued / broken springs → weak or inconsistent gripping pressure.
Pivot / bearing
Side play or looseness at the bar pivots and cam-follower rollers.
Gripping pressure test
Use a pressure gauge / slip paper strip; all fingers should hold evenly at the spec pressure.
Surface / corrosion
Rust, ink buildup or bent fingers on the bar.

Compatible Machine Models

Model
Suitability
Note
Heidelberg GTO 52
Yes — title
Listing title: GTO 52
Heidelberg SM52 / PM52
On label
Product label reads "SM52, 548mm, 10 teeth" — confirm exact model
Heidelberg GTO 46 / MO
Confirm
Same family; confirm length / teeth count
Roland / Komori
General range
Seller supplies Heidelberg / Roland / Komori parts; confirm exact bar



FAQ

Question
Answer
What is the MOQ?
1 pc (per listing).
What is the lead time?
Within 3 working days after payment (per listing).
Which machine does it fit?
Heidelberg GTO 52 (title); product label reads SM52, 548mm, 10 teeth — confirm the exact model before ordering.
Can other models / lengths be supplied?
Seller supplies Heidelberg / Roland / Komori parts; confirm other bars on request.
What is the quality?
Excellent, 100% tested (per listing).
What shipping / logistics?
Not specified — confirm courier / air / sea with the seller.
