1. Drill‑bit Diameter & Drilling‑depth Specification Table
表格
| Drill Outer Diameter |
Total Length |
Max Effective Drilling Depth |
Important Remarks |
| 3.0 mm |
80 mm |
25‑35 mm |
Very delicate, easy‑break; no breakage return service |
| 3.5 mm |
80 mm |
25‑35 mm |
Very delicate, easy‑break; no breakage return service |
| 4.0 mm |
80 mm |
35‑40 mm |
Handle carefully, avoid side‑force impact |
| 4.5 mm |
80 mm |
35‑40 mm |
Handle carefully, avoid side‑force impact |
| 5.0 mm |
80 mm |
40 mm |
Standard popular stock size |
| 5.5 mm |
80 mm |
40 mm |
Standard popular stock size |
| 6.0 mm |
80 mm |
40 mm |
Standard popular stock size |
| 6.5 mm |
80 mm |
40 mm |
Standard popular stock size |
| 7.0 mm |
80 mm |
40 mm |
Standard popular stock size |
| 8.0 mm |
80 mm |
40 mm |
Standard popular stock size |
| 9.0 mm |
80 mm |
35‑40 mm |
High‑rigidity for thick‑stack paper |
| 10.0 mm |
80 mm |
35‑40 mm |
High‑rigidity for thick‑stack paper |
Material: High‑Speed‑Steel (HSS); inner‑outer cutting‑edges fully polished, wax‑coated before first‑time usageAlibaba.co....
Applicable Paper‑Material & Max Stack Thickness
表格
| Work‑piece Material |
Max Stack Thickness |
Notes |
| Offset / coated art paper |
Up to 40 mm stack |
Calendar, book, document binding hole |
| Cardboard / grey board |
Up to 30 mm stack |
Carton sample, manual‑book punching |
| PVC laminate / plastic sheet |
Up to 20 mm stack |
Plastic card, laminated document |
| Synthetic leather |
Up to 15 mm stack |
Leather cover notebook |
Warning: Do not apply lateral side‑load; small‑size bits (3‑4 mm) are fragile, breakage caused by misuse is non‑returnable.
2. Compatible Paper‑drilling Machine Quick‑reference Table
表格
| Machine Brand |
Typical Compatible Models |
Remarks |
| Lihit |
Full‑series paper drillers |
Primary matching machine for this drill bit |
| Uchida |
LA‑series, XA‑series auto multi‑head paper drill |
Straight‑shank installationUCHIDA YOK... |
| IDEAL |
Industrial paper punching machines |
Semi‑auto & auto single/multi‑head |
| Heidelberg |
Post‑press paper drilling unit |
Printing‑house post‑press processing |
| Domestic brand |
Manual / electric single‑head & multi‑head puncher |
Suitable for most common domestic paper‑drilling equipment |
Compatible equipment type: manual, semi‑automatic, fully‑automatic, single‑head or multi‑head paper drilling machines.
3. Weight, Dimension & Packaging Specification Guide
表格
| Packing Type |
Unit Weight |
Outer Dimension per package |
Best‑fit Scenario |
| Single‑piece plastic tube (standard) |
0.12 kg / pc |
26 × 26 × 85 mm |
Sample test, spare‑parts stock; MOQ 1 pc |
| 10‑pcs set kit (mixed‑diameter) |
1.3 kg / set |
95 × 35 × 90 mm |
Printing‑house workshop spare‑part inventory |
| OEM bulk carton |
12‑15 kg / carton |
Custom export carton |
Large‑volume factory procurement; OEM MOQ 100 pcs |
Standard: 1 piece per transparent plastic protective tube, anti‑collision & anti‑rust protection.

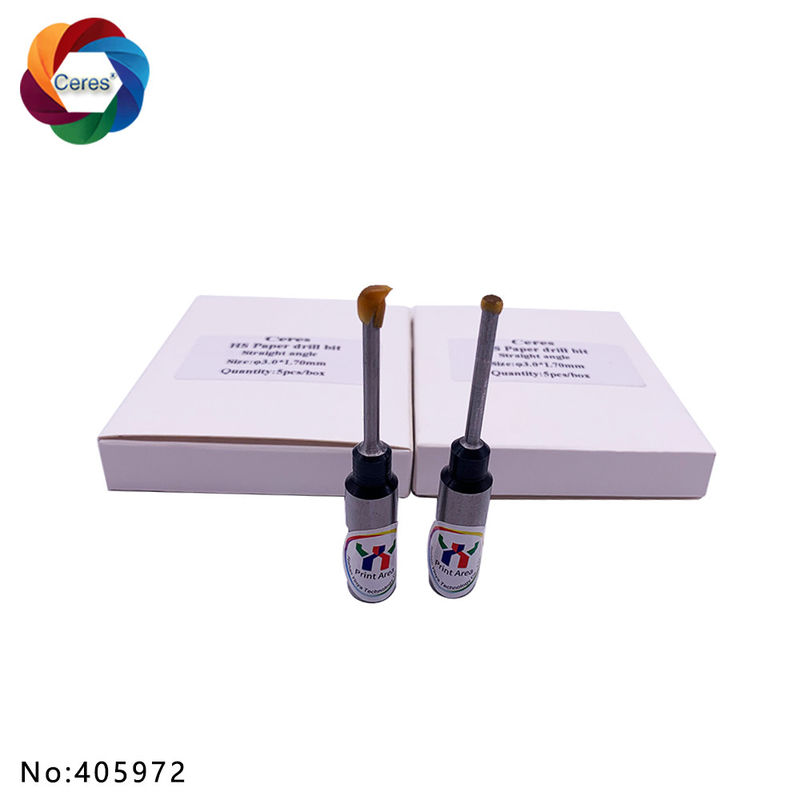

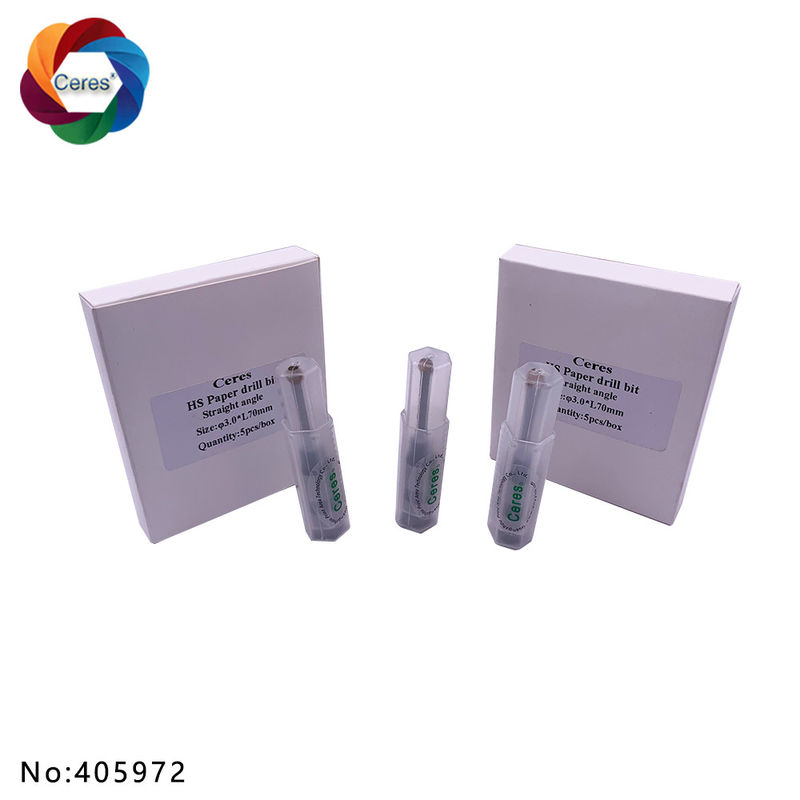

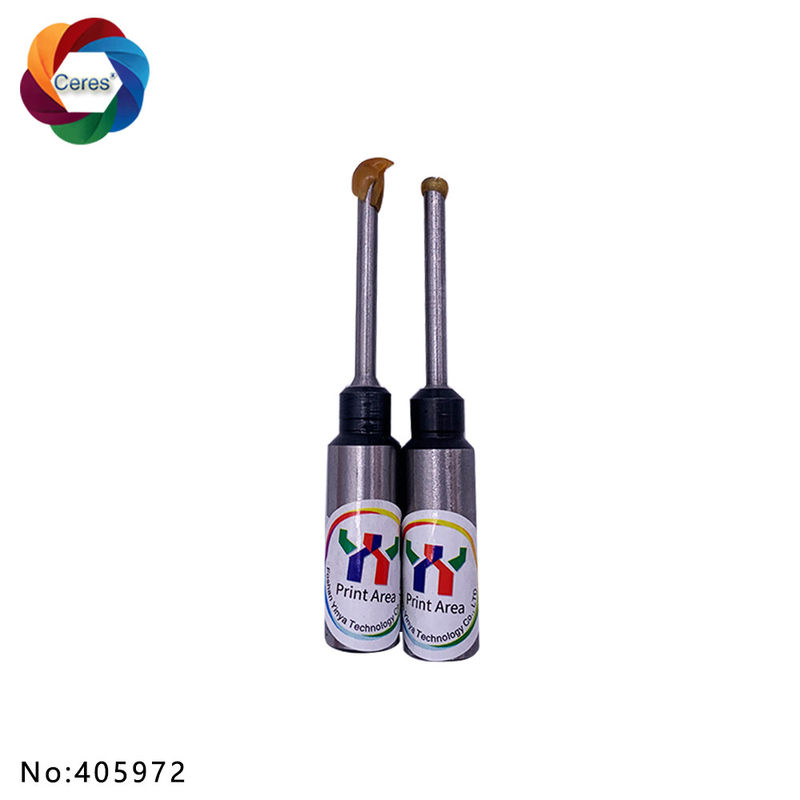

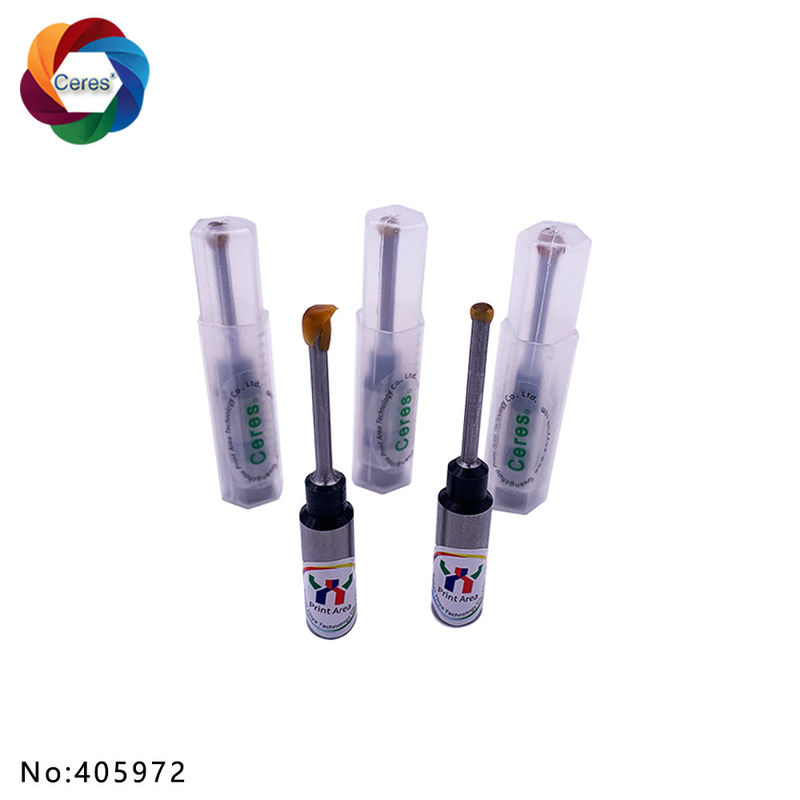

4. Product Real‑shot & Package Picture Notes (≥5 images)
5. Storage & Daily‑maintenance Instruction
表格
| Item |
Specification |
| Storage environment |
15‑25 ℃ dry warehouse; avoid damp / rust‑prone location |
| Storage posture |
Keep inside original plastic tube; prevent dropping, collision, side‑pressure bending |
| Shelf‑life |
24 months unopened original‑pack, anti‑rust wax intact |
| After‑opening maintenance |
Clean paper‑chip residues after each shift; regular sharpening when hole burr appears; keep cutting‑edge away from hard metal objects |
Tip: Matching accessories available: drilling pads / backing pads, drill‑bit sharpening kits for on‑site re‑grinding.
6. FAQ Frequently Asked Questions
Q1: What is MOQ? A: Minimum order quantity is 1 piece. Mixed‑diameter sample set is available for press test.
Q2: What is delivery lead‑time? A: Stock standard‑size bits: ship within 3 working‑days after payment. Special‑custom shank / special‑length bits: 12‑16 working‑days.
Q3: What customization service do you provide? A: Custom total‑length, custom shank size (straight‑shank / taper‑shank), special‑hardness HSS material, OEM‑label packing for reseller.
Q4: Logistics & shipping options? A: Courier: DHL, TNT, FEDEX, UPS, EMS. Large‑volume bulk‑order choose sea‑freight or air‑freight. Payment terms: T/T, Western Union, Paypal.
Q5: Punch hole has burr / paper‑tearing phenomenon? A: Check: 1) Drill‑bit cutting‑edge is blunt, needs sharpening; 2) Drilling‑pad is worn‑out; 3) Too‑fast feeding‑speed. Replace backing‑pad or re‑sharpen drill‑bit.
Q6: Small‑diameter drill bit broken quickly? A: 3‑4 mm bits belong to delicate thin‑wall hollow‑structure; strictly forbid side‑force, offset‑load or violent impact. Breakage caused by improper operation will not be accepted for return.
Q7: Can I drill hard cardboard or wood material? A: Designed mainly for paper, cardboard, PVC and synthetic‑leather; not for solid‑wood or hard‑metal drilling. Wood‑drilling will quickly blunt cutting‑edge.
7. Competitor Comparison Table
表格
| Comparison Item |
CERES YY HSS Hollow Paper Drill Bit |
General domestic carbon‑steel paper drill bit |
Import premium hollow drill‑bit |
| Raw‑material |
High‑Speed‑Steel HSS; inner‑outer edges double‑side polished |
Ordinary carbon‑steel; only outer‑edge grinded |
High‑grade HSS tool‑steel, precision ground |
| Hardness & wear‑resistance |
High hardness, long service‑life, less frequent sharpening |
Fast‑dulling, frequent re‑grinding required |
Top‑level hardness & wear‑resistance |
| Hole‑quality |
Clean burr‑free hole, neat paper‑cut edge |
Easy paper‑tearing & burr‑hole after short‑time use |
Ultra‑clean hole output |
| Size‑range |
Complete 3‑10 mm series, match Lihit / Uchida / IDEAL machines |
Partial size missing, shank tolerance deviation |
Full‑size series, strict tolerance control |
| Anti‑rust treatment |
Anti‑rust wax‑coated for each single bit |
No wax‑coated, easy‑rust in damp warehouse |
Special anti‑rust surface treatment |
| Price‑level |
Mid‑range cost‑effective |
Low‑cost entry‑level |
High premium price |
| Core‑advantages |
HSS double‑sided polished cutting‑edges; wide‑compatibility for mainstream paper‑drilling machines; clean punching‑hole effect, cost‑saving substitute for imported drill‑bits |
Low purchase‑cost, fast‑wear, poor punching‑quality |
Excellent durability & hole‑precision, high procurement‑cost |
Core selling‑point: HSS high‑speed‑steel hollow paper punch drill‑bit, double‑side polished inner‑outer cutting‑edges; compatible with most printing‑house paper‑drilling equipment; delivers clean burr‑free holes for paper‑stack, cardboard, PVC‑laminate and synthetic‑leather.
8. Customer Cases & Testimonials
- South‑East‑Asia commercial printing house Used for calendar & book‑binding paper‑stack punching. 5 mm / 6 mm drill‑bits run stable in multi‑head Uchida paper drill machine; neat holes, reduces post‑process burr‑trimming workload.
- Middle‑East document & certificate printing factory Applied for certificate & contract file batch‑drilling; HSS material maintains sharp‑ness under long‑time continuous production.
- South‑America small‑mid print‑shop Fit for Lihit semi‑auto drilling machine; complete diameter‑range available, convenient spare‑parts procurement for daily‑production.
Customer feedback quote: “The CERES HSS hollow paper drill bits give us clean burr‑free punching holes. Good wear‑resistance for our printing‑house daily‑batch‑drilling work, good economical replacement for imported drill bits.”
Basic Original‑page Product Information
‑ Place of Origin: Guangdong, China ‑ Brand Name: Ceres, YY ‑ Material: HSS High‑Speed‑Steel ‑ Diameter options: 3‑10 mm ‑ MOQ: 1 Piece ‑ Package: 1 Pc / plastic tube package ‑ Unit weight: 0.12 kg/pc ‑ Delivery Time: within 3 working days after payment ‑ Payment Terms: T/T, Western Union, Paypal ‑ Supply Ability: 100 Pieces per Week
