6007 C3 Timken Deep Groove Radial Ball Bearing 35x62x14mm

• Feature:
• extra light series with compact dimensions and low weight
• suitable for high radial loads and light axial loads in both directions
• offers high running accuracy and high speeds
• seal: open (without seal); for higher speeds than with sealed ball bearings and easy relubrication
• with increased radial internal clearance (C3): for high temperature gradient between the bearing rings or for fastening with press fit
• good fixed bearing property, but can also be used as a floating bearing, each in both directions
• manufacturers of bearings, such as FAG, KOYO, NSK, SKF, SNR, etc. assign different suffixes for their characteristics, for better orientation take note of the comparison table of bearings (see further information)

Specifications & Cross‑Reference

表格

Cross reference: Timken 6007‑C3 ↔ SKF 6007‑C3 ↔ NSK 6007‑C3 ↔ FAG 6007‑C3.

Note: C3 clearance is mandatory for high‑speed printing machinery; DO NOT use C0 normal‑clearance as replacement.

Installation & Replacement Guide

1. Clean shaft & housing thoroughly, remove ink, paper‑dust and old grease.
2. Remove old bearing by bearing puller, apply force on correct ring only.
3. Press‑fit method: apply force only on inner ring (shaft fit) or outer ring (housing fit). Never hammer rolling elements / cage.
4. Hot mounting: heat bearing to 80‑100℃ by induction heater, NO open flame.
5. Fill proper high‑temperature grease (1/3‑1/2 cavity volume).
6. Rotate manually to check smooth running; run‑in without load for 5‑10 min.

Compatible Printing Press List

‑ Heidelberg SM52 / SM74 / CD102 / XL105 ‑ Komori L428 / LS440 ‑ Man‑Roland R700 / R900 ‑ KBA Rapida74 / RA105 ‑ Polar 92/115/137 cutter ‑ Domestic offset press series. Application: ink roller, dampening roller, feeder drive shaft.

Package & Real‑shot reference

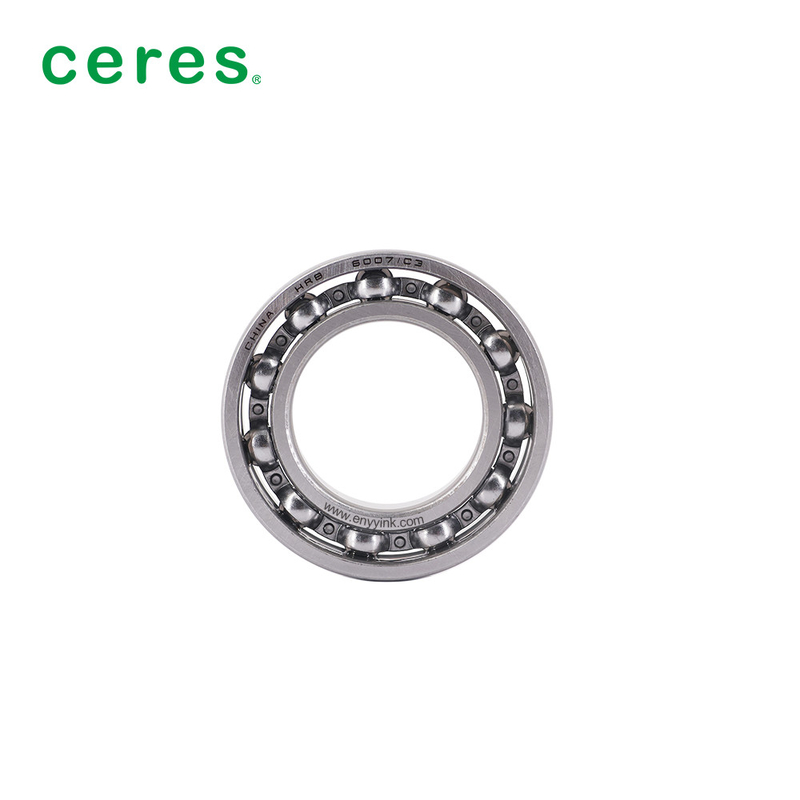

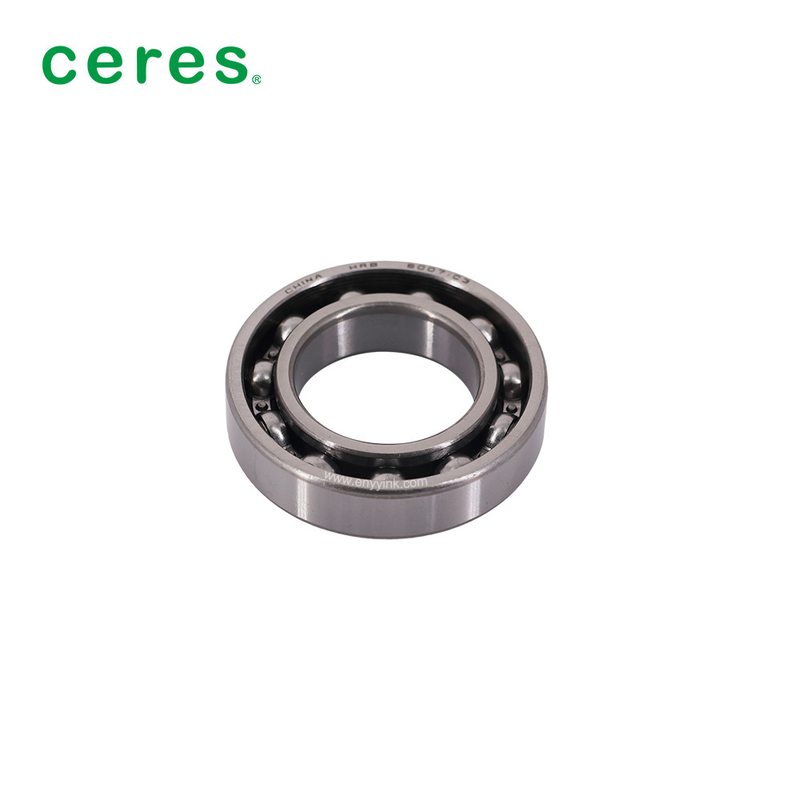

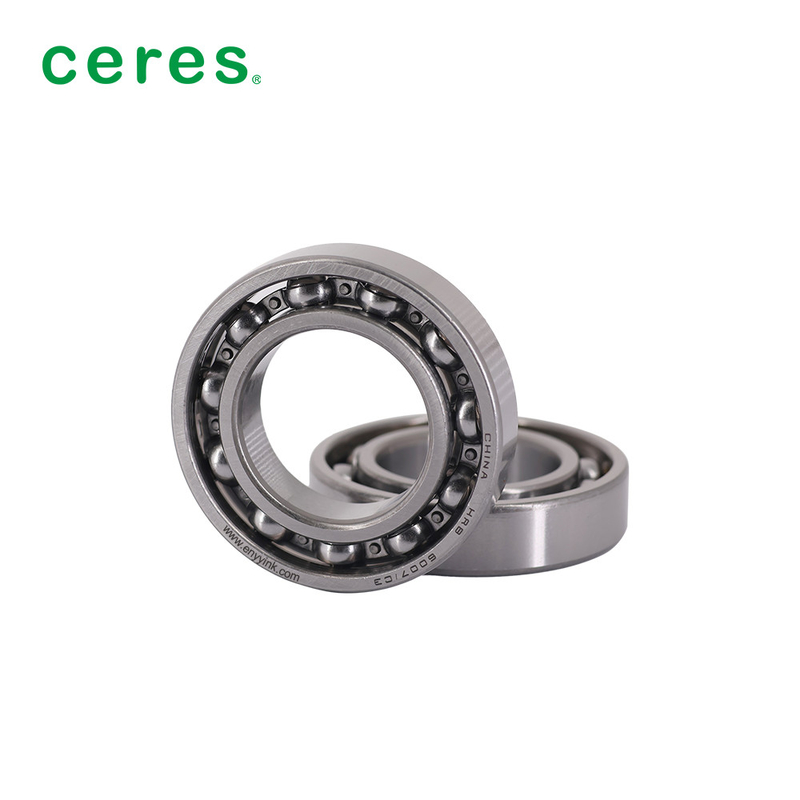

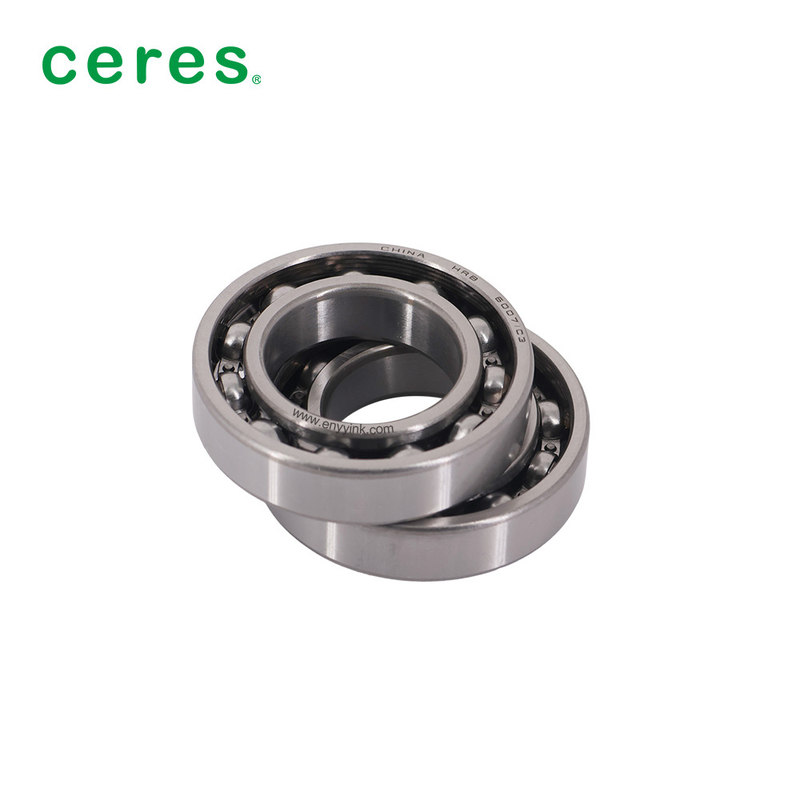

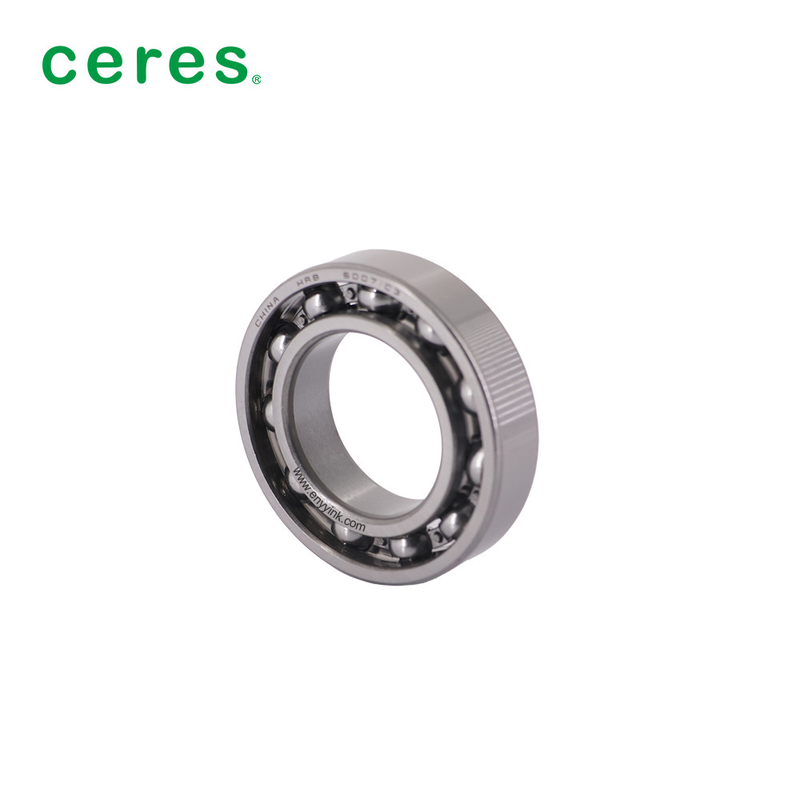

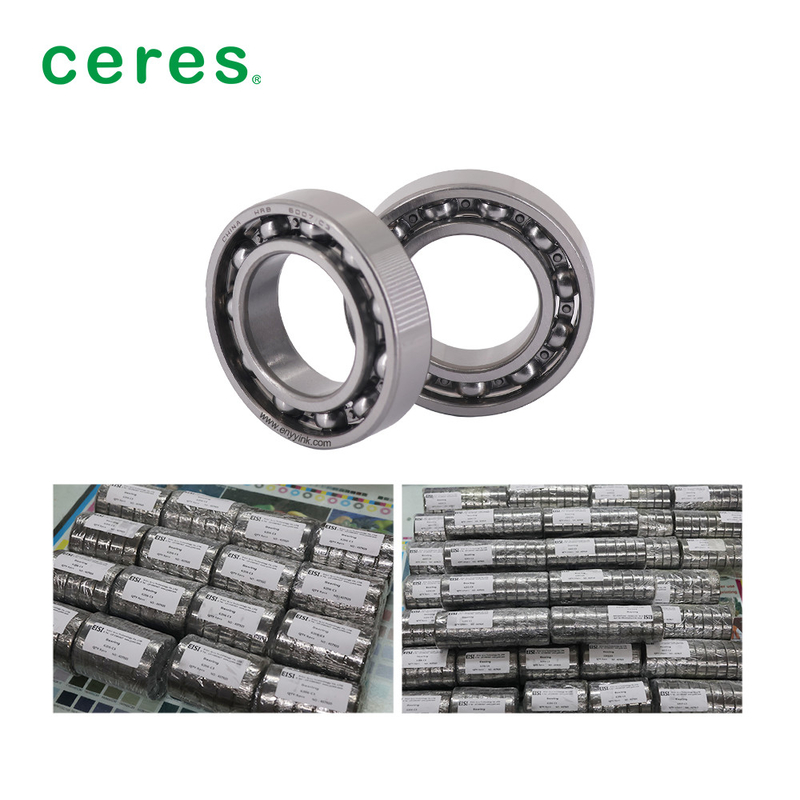

‑ Photo1: Full bearing appearance ‑ Photo2: Marking / logo engraving close‑up ‑ Photo3: Internal structure view ‑ Photo4: Bulk stock photo ‑ Photo5: Single‑piece retail box ‑ Photo6: Carton outer package.

FAQ

1. MOQ: 1 pc for stock; 10 pcs per standard box. Sample 1‑2 pcs available.
2. Lead‑time: 2‑3 working days for stock items; 7‑12 working days for custom sealed version(6007‑2Z‑C3).
3. Customization: 6007‑2Z‑C3 shielded version available; dimension can NOT be modified.
4. Shipping: DHL / TNT / UPS, air & sea freight available, non‑hazardous mechanical spare‑part.
5. Storage: Keep cool, dry, anti‑rust. Unopened shelf‑life: 24 months.
6. Warning: C0 normal‑clearance bearing is NOT suitable for printing press high‑speed hot‑running condition, risk of seizure.

Competitor Comparison

表格

Customer Cases & Testimonials

‑ Case1: Printing‑press repair service provider, replacement for Heidelberg SM74 / CD102 ink & dampening roller, 40‑60 pcs monthly purchase, reduce unexpected downtime. ‑ Case2: Southeast‑Asia printing plant spare‑parts buyer, for Komori & Man‑Roland offset press, good performance under high‑temperature tropical workshop.

“6007‑C3 Timken works perfectly for Heidelberg dampening roller, no hot seizure under high‑speed running.” “Consistent clearance tolerance, low failure rate for printing press spare‑parts repair.”
